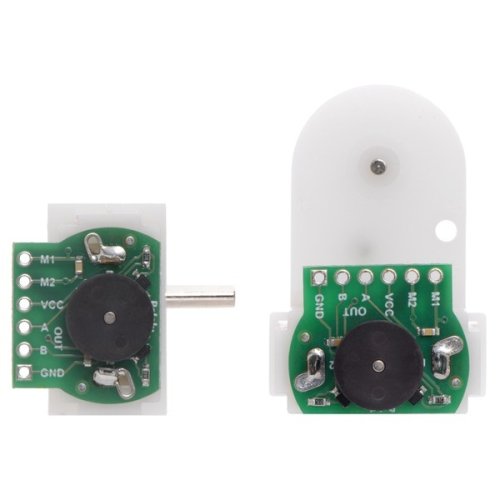

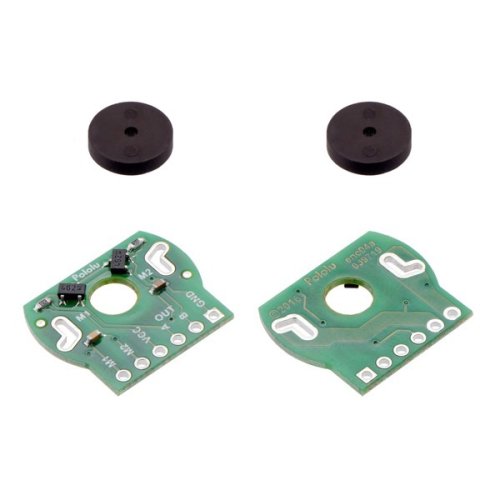

This kit includes two dual-channel Hall effect sensor boards and two 6-pole magnetic discs that can be used to add quadrature encoding to two mini plastic gearmotors with extended back shafts (motors are not included with this kit). The encoder board senses the rotation of the magnetic disc and provides a resolution of 12 counts per revolution of the motor shaft when counting both edges of both channels. To compute the counts per revolution of the gearbox output shaft, multiply the gear ratio by 12.

Specifications:

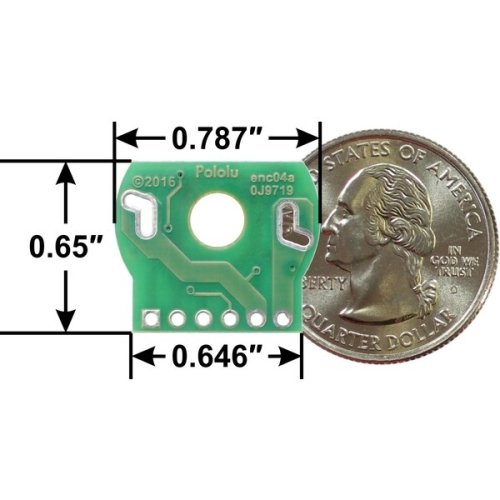

  • Size: 20 mm × 16.5 mm1
  • Weight: 2.4 g2
  • Minimum operating voltage: 2.7 V
  • Maximum operating voltage: 18 V
  • PCB dev codes: enc04a
  • Other PCB markings: 0J9719
Documents:
Warranty:
  • Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.
Package Includes:
  • 1 x Pololu 1523 Magnetic Encoder Pair Kit for Mini Plastic Gearmotors, 12 CPR, 2.7-18V
