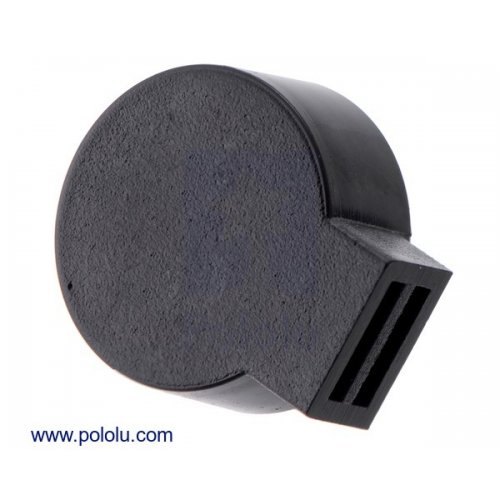

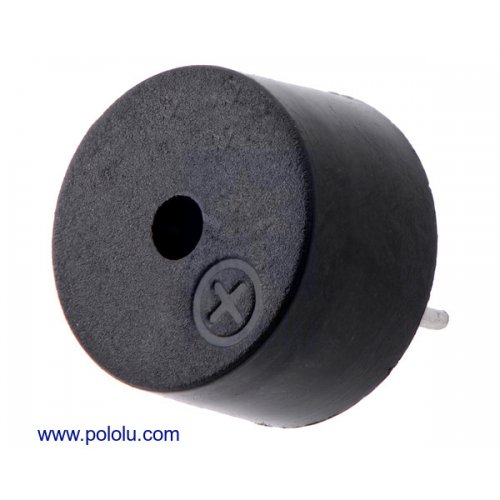

This electromagnetic transducer is a compact way to add sound to your embedded project: just supply it with a PWM signal at 3V to 7V / 4V to 6V and it will produce sound at the frequency of the supplied signal from an opening on the side / top. Since the 70mA / 60mA maximum current draw is higher than what can be supplied by a typical microcontroller I/O pin, you will probably want to control it with a suitable driver, such as a small MOSFET.
Warranty:
- Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.
Package Includes:
- 1 x Pololu 1484 / 1485 9mm Electromagnetic Buzzer: 30Ω / 40Ω, 3-7V / 4-6V
Pololu 1484 / 1485 9mm Electromagnetic Buzzer: 30Ω / 40Ω, 3-7V / 4-6V
- Brand: Pololu
- Product Code:Pololu-1484-1485-Buzzer
- Reward Points:2
- Availability:In Stock
-
रo 212.00
- Price in reward points:212
-
- 5 or more रo 120.00
Available Options
Related Products
Tags: Buzzer, Electromagnetic
