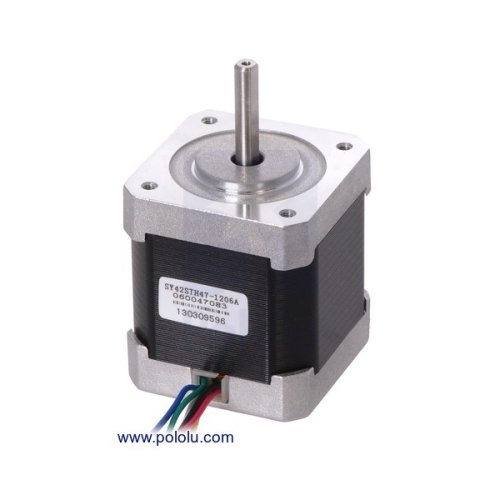

This hybrid stepping motor has a 1.8° step angle (200 steps/revolution). Each phase draws 1.2 A at 4 V, allowing for a holding torque of 3.2 kg-cm (44 oz-in). The motor has six color-coded wires terminated with bare leads that allow it to be controlled by both unipolar and bipolar stepper motor drivers. When used with a unipolar stepper motor driver, all six leads are used. When used with a bipolar stepper motor driver, the center-tap yellow and white wires can be left disconnected.

Specifications:
  • Size: 42.3 mm square × 48 mm, not including the shaft (NEMA 17)
  • Weight: 350 g (13 oz)
  • Shaft diameter: 5 mm “D”
  • Steps per revolution: 200
  • Current rating: 1.2 A per coil
  • Voltage rating: 4 V
  • Resistance: 3.3 Ω per coil
  • Holding torque: 3.2 kg-cm (44 oz-in)
  • Inductance: 2.8 mH per coil
  • Lead length: 30 cm (12″)
  • Output shaft supported by two ball bearings
Applications:
  • Printers
  • CNC machines
  • 3D printer/prototyping machines (e.g. RepRap)
  • Laser cutters
  • Pick and place machines
  • Linear actuators
  • Hard drives
Documents:
Warranty:
  • Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.
Package Includes:
  • 1 x Pololu 1200 MEMA 17 Stepper Motor: Unipolar/Bipolar, 200 Steps/Rev, 42×48mm, 4V, 1.2 A/Phase
Motor Specifications
Type NEMA 17 Stepper Motor: Unipolar/Bipolar
Torque 3.2 kg-cm (44 oz-in)
Step Size 1.8° step angle
Steps per revolution 200
Electrical Specifications
Maximum Operating Voltage 4V
Maximum Operating Current 1.2 A per coil
Resistance 3.3 Ω per coil
Inductance 2.8 mH per coil
Physical Attributes
Weight 350 g (13 oz)
Dimensions 42.3 mm square × 48 mm, not including the shaft (NEMA 17)
Length Lead Length-30cm
Additional Information
Warranty

Write a review

Please login or register to review

Pololu 1200 NEMA 17 Stepper Motor: Unipolar/Bipolar, 200 Steps/Rev, 42×48mm, 4V, 1.2 A/Phase

  • Brand: Pololu
  • Product Code:Pololu-1200-NEMA-17
  • Reward Points:29
  • Availability:In Stock
  • रo 2,888.00

  • Price in reward points:2888

  • 5 or more रo 2,823.00
  • 11 or more रo 2,800.00
  • 27 or more रo 2,777.00
  • 55 or more रo 2,755.00
