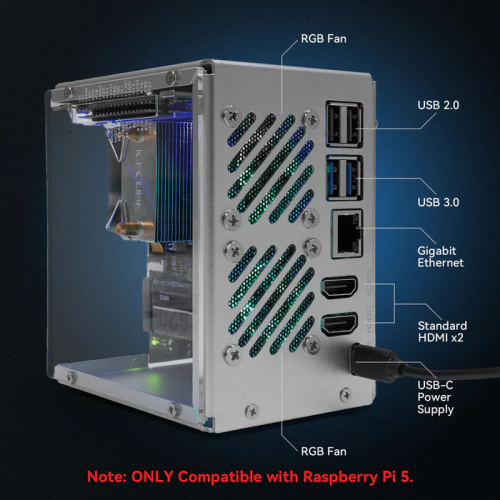

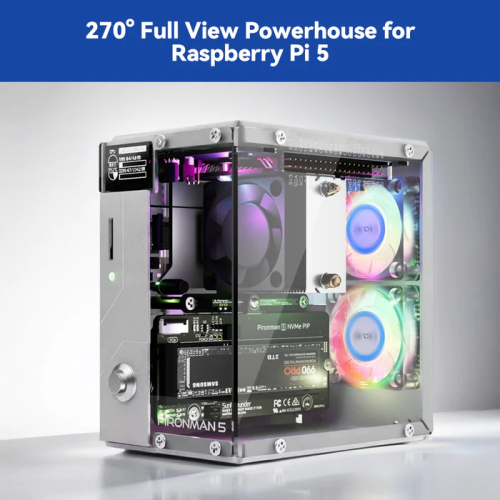

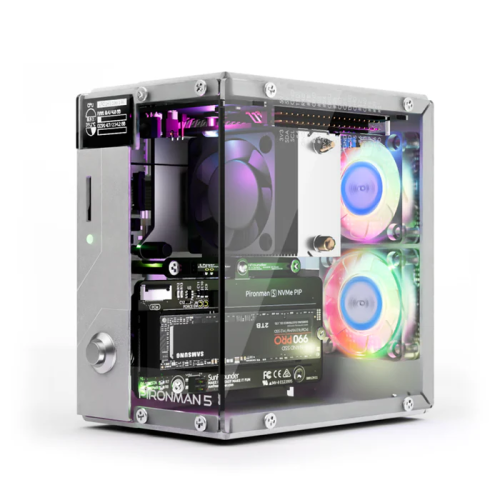

Raspberry Pi 5 Mini PC Case: Enhance your Raspberry Pi 5 with the Pironman 5, built with sturdy aluminum, superior cooling, NVMe M.2 SSD support, OLED display, RGB lighting, standard HDMI ports x2, and a secure power switch. Perfect for NAS, Home Assistant, Media and Game Centers.

Expandable NVMe M.2 SSD Slot: Boost your Raspberry Pi 5's performance with the Pironman 5's NVMe M.2 SSD slot, supporting multiple sizes(2230, 2242, 2260, 2280) for increased storage and faster system response.

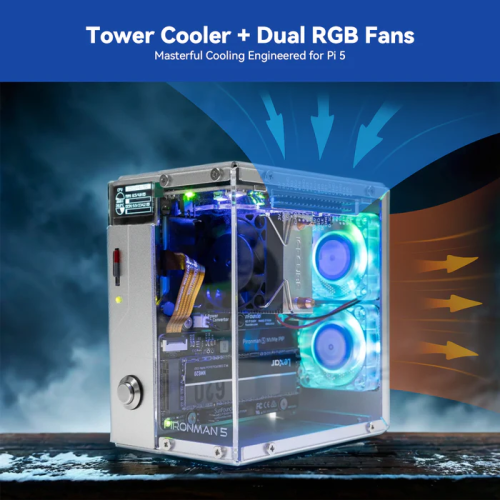

Advanced Cooling System: Keep your Raspberry Pi 5 cool and stylish with the Pironman 5's tower cooler and dual RGB fans, featuring dust filters for durable, low-maintenance operation.

OLED Display for Instant Insights: The Pironman 5 includes a 0.96” OLED display, providing immediate updates on CPU and RAM usage, temperature, IP address, and more.

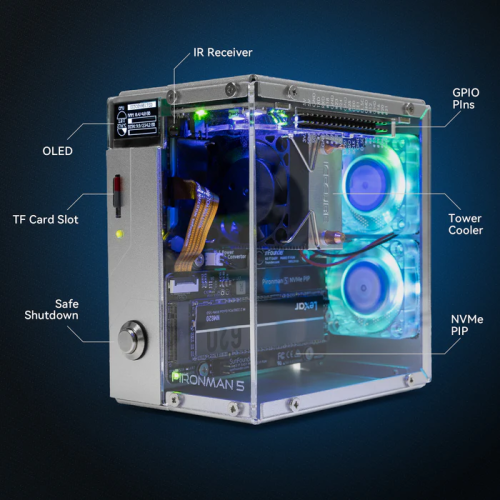

Enhanced Functionality and Safety: The Pironman 5 secures your Raspberry Pi 5 with features like safe shutdown, customizable RGB LEDs, HDMI ports, an IR receiver, and an external GPIO extender, enhancing functionality and connectivity.

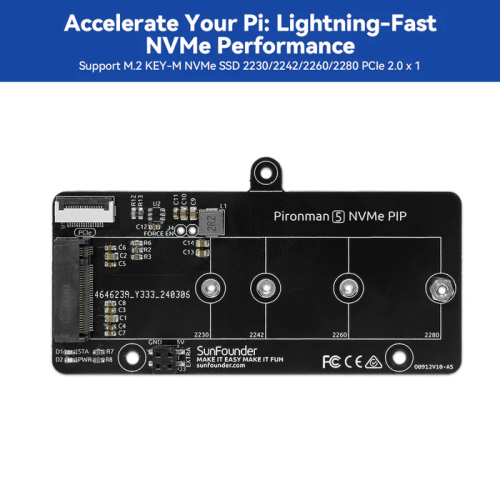

The Pironman 5 includes the Pi5 NVMe PIP (PCIe Peripheral Board), a PCIe adapter board specifically designed for NVMe solid-state drives. This board supports four sizes of NVMe SSDs: 2230, 2242, 2260, and 2280, all of which can be installed in an M.2 M key slot. The connection is certified for Gen 2.0 speeds (5 GT/sec), but can be forced to Gen 3.0 (10 GT/sec) for faster performance.

Compatible NVMe SSDs include:

• ADATA Legend 700, 800, and XPG SX8200 Pro
• Axe Memory Generic Drive
• Crucial P2, P3, P3 Plus M.2
• Inland PCIe NVMe SSD
• KIOXIA EXCERIA and EXCERIA G2 NVMe SSD
• Kingston KC3000, NV2
• Lexar NM710, NM620
• Netac NV3000, NV2000 NVMe SSD
• Origin Inception TLC830 Pro NVMe SSD
• Pineberry Pi Pinedrive (2280)
• PNY CS1030
• Sabrent Rocket 4.0, Rocket Nano
• Samsung 970 EVO Plus, 980, 980 Pro
• Team MP33
• Western Digital SN850, SN740, SN570, SN530, and Black
• SN750 SE (Phison Controller), and Blue SN550/SN580 series

(If you know how to install the latest rpi-eeprom updates, pieeprom-2024-01-24.bin fixed the Western Digital Blue SN550 nvme boot issue. For more information, visit https://forums.raspberrypi.com/viewtopic.php?t=364327)XPG GAMMIX S70 BLADE, SX8200 Pro

Incompatible NVMe SSDs:

• Due to compatibility issues, we recommend avoiding the following NVMe SSD drives equipped with a Phison controller:
• Western Digital Green SN350 series,Black SN850 series,

• Black SN770
• Inland tn446 nvme drive
• Corsair MP600 SSD
• Samsung PM991
• Kingston OM8SEP4256Q-A0
• Transcend 110Q (TS500GMTE110Q)
• Specifically, SN350 and SN570 prevent the Raspberry Pi 5 from booting at all.

The Detailed Online Tutorials can be found here: https://docs.sunfounder.com/projects/pironman5/en/latest/

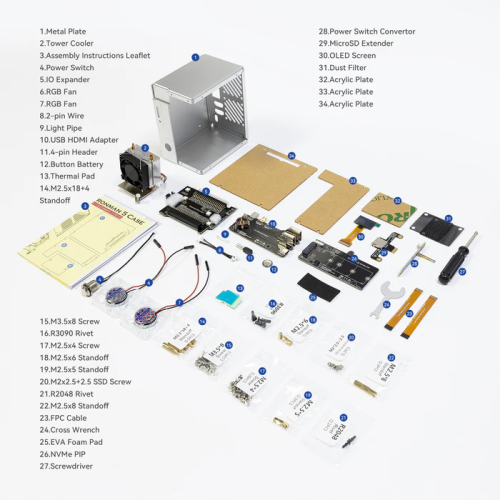

Package Includes:

• 1 x Pironman 5 NVMe M.2 SSD PCIe Mini PC Case for Raspberry Pi 5 (EN/DE/JP/FR/IT/ES Online Documents）
