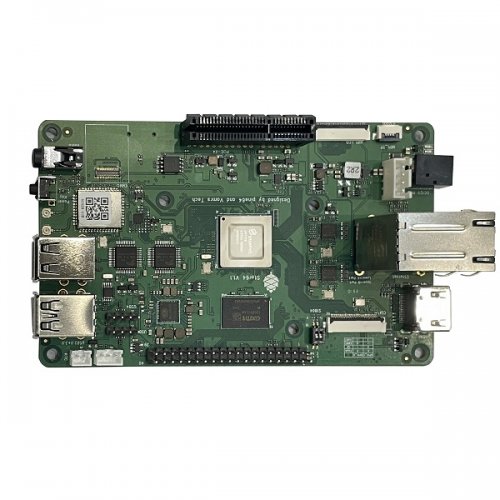

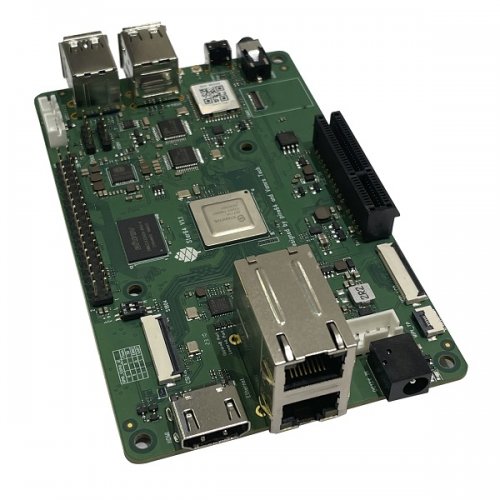

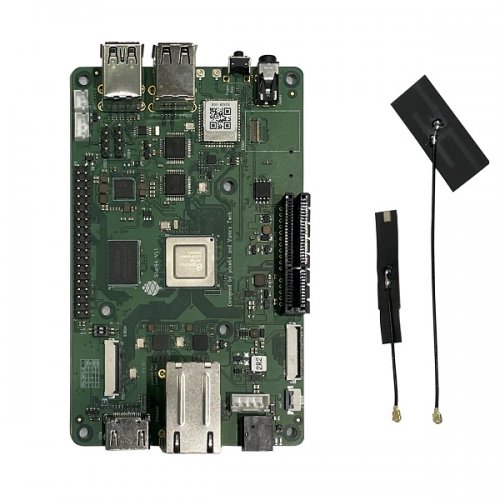

The Star64 model A SBC featuring the StarFive JH-7110 SoC. This SoC combines a quad-core SiFive U74 RISC-V 64bit CPU with an IM BXE-4-32-G52-2EE GPU. This SBC is equipped with 8GB LPDDR4 system memory, onboard 128Mb QSPI NOR Flash, an optional eMMC module (up to 128GB) and microSD slot for booting. The board is equipped with a dual band Wifi/BT with flex antenna, a PCIe x1 open ended slot, 1x USB 3.0 type A Host, 3x USB 2.0 Host, dual Gigabit Ethernet port, MiPi DSI interface, touch Panel interface, MiPi CSI interface, as well as many other peripheral device interface such as UART, SPI, I2C, for makers to integrate with sensors and other peripherals.

The Star64 is a new RISC-V platform that will serve PINE64 community for years to come.

Note: Power Adapter requirement: 12V 3A or 5A type M 5.5mm OD/2.1mm ID barrel type DC Jack Power Supply

Specifications:

CORE	QUAD 64-bit RISC-V U74 CPU
CORE	Embedded 32-bit RISC-V E24 CPU
MEMORY	4GB/8GB LPDDR4 System Memory
	On board 128Mb QSPI Nor Flash
	optional eMMC module (up to 128GB)
	microSD slot
DISPLAY INTERFACE	MIPI-DSI 4 lanes
DISPLAY INTERFACE	Digital Video port
CAMERA INTERFACE	MIPI-CSI 4 lanes
HUMAN INTERFACE	i2c Touch Panel port
SOUND	3.5mm stereo audio jack with mic input
COMMUNICATION	Dual Gigabit Ethernet
COMMUNICATION	Dual band Wifi/BT
EXPANSION	1x native USB 3.0 Host Port
	3x shared USB 2.0 Host Port
	PCIe x1 Slot
	GPIO Bus: i2c, SPI, and UART
POWER	12V 3A or above type M 5.5mm OD/2.1mm ID barrel type DC Jack Connector
PACKAGE CONTENTS	Star64 model A SBC board
