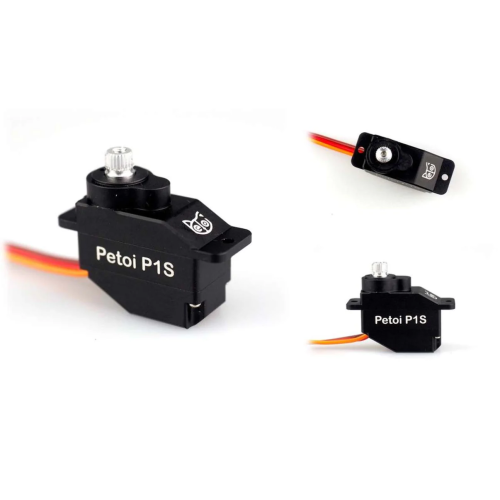

Slim metal servo motors with fast and precise actuation to meet the high requirements of legged robotic walking joints and head panning

We use high-end coreless motors in the servo for instant reverse rotation and large output torque.  The rated life span is longer than 100 hours of continuous walking. You may need this 10-servo set if you expect to use four-legged open source robot dog Bittle extensively, such as for teaching or researching quadruped walking robots.  The servos are brushed and the brush contacts will eventually wear out, so you'd need some spare servos.

Demos of servos used by Bittle open source robotics kit:

Servo Specifications:

• Model: P1S
• Operating Voltage: 6.0V ~ 8.4V
• Idle Current: 200mA
• Stall Current : 1500mA
• Stall Torque: 3kg*cm
• Control Type: Digital PWM
• Signal range: 500~2500µs
• Dead Band: ≤2µs
• Operating Travel: 270°
• Operating Speed :07 sec/60°
• Sensor: Potentiometer
• Size: 30 x 24 x 12mm
• Ball-bearing : 1 bearing
• Gear Material: Metal
• Motor: Coreless
• Connector wire: 7mm/17mm
• Spline count: 25

Package Includes:

• 1 x Quadruped Robot Bittle Metal Servo Set - 10 Servos
