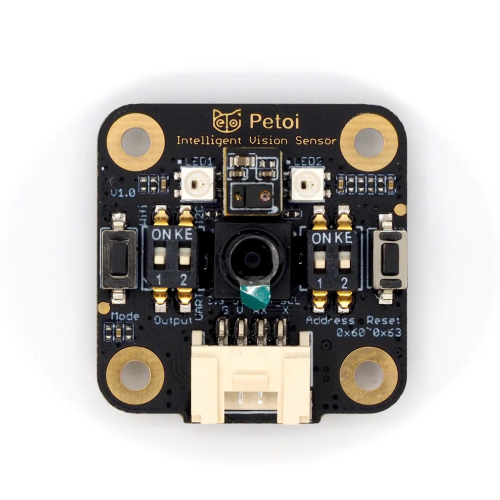

The intelligent camera module integrates multiple vision recognition algorithms running on its ESP32 dual-core processor. It can return recognized human body, objects, and symbols through serial/I2C/WiFi at a rate of 25fps or 50fps.  A deck of symbol cards is included for testing the recognition algorithms.  Coding is required to integrate the camera with other hardware such as Petoi walking legged robot Bittle.

Features:

  • Color recognition, ball recognition, human sensing, card pattern (shapes, traffic signs, and numbers) recognition.
  • Motion gestures, ambient light, and proximity sensing functionalities with built-in infrared sensor
  • No network necessary - all its vision algorithms are processing locally, with no need of the network, and no worries about privacy issues
  • Widely Applicable - it can be widely used in intelligent toys, AI educational robots, robotics kits, IoT robotics, maker products, and other applications
  • Stream video through WiFi
  • Compatible with any Arduino-compatible microcontroller(such as Arduino Uno) with grove socket

 A demo of attaching the camera to the mouth of quadruped robot dog Bittle to perform object following


Specifications:

  • CPU: 240MHz dual-core processor and larger memory
  • Camera: 300k (640*480) pixel RGB camera with a wide-angle lens; FPS(max) 60fps; sensor Ssze 1/4”; field of view - FOV 84°; focal length - 2.5mm; aperture - 2.2mm; len diameter 5.5mm
  • Light Intensity & Motion Sensor: can detect light intensity, infrared proximity, and hand glide gestures
  • A deck of symbol cards is included for testing the recognition algorithms

Documentations:

Package Includes:

  • 1 x Intelligent Camera Module For Arduino

Write a review

Please login or register to review

Intelligent Camera Module For Arduino

  • Brand: Petoi
  • Product Code:NR-PETI-Intelligent-Camera-Module
  • Reward Points:87
  • Availability:In Stock
  • रo 8,778.00

  • Price in reward points:8778

  • 2 or more रo 8,708.00
  • 3 or more रo 8,638.00
  • 8 or more रo 8,567.00
  • 17 or more रo 8,497.00
