The Quad-Bearing Gimbal Joystick is a high-quality, two-axis human input device. It is useful for sending continuously-variable settings, such as position, direction, or throttle values to a connected microcontroller.
The joystick has a spring return on one axis to keep it centered, and detents on the other to hold its position. The detent strength and shaft length are adjustable, for a customized action and feel. It interfaces readily with analog-to-digital converters as well as simple RC timing circuits. The included adapter kit provides a connection option to breadboards or thru-hole boards with 0.1" spacing (simple soldering required).
Key Features:
- 5 k-ohm linear-taper potentiometer on each axis provides even resistance transitions without skips
- Ball-bearing action on both axes make for silky-smooth, jitter-free operation
- Selectable spring return-to-center on vertical axis for rudder-type or throttle-type inputs
- Selectable detents and/or friction on vertical axis to hold joystick in place when not being manually held
- Power Requirements: Passive device; will work with any low-voltage supply
- Interface: Resistive or voltage divider output
- Dimensions: 2.7 x 2.3 x 2.4 in (6.7 x 5.9 x 6.21 cm)
Application Ideas:
- Game controller
- Remote control for robotics
- Manual control for interactive displays
Note: Simple soldering is required to assemble the optional adapter board.
Documents:
- Gimbal Joystick Mount Plate Files
- Gimbal Joystick with Adapter Product Guide
- Gimbal Joystick BASIC Stamp Code
- Gimbal Joystick Example Spin Code

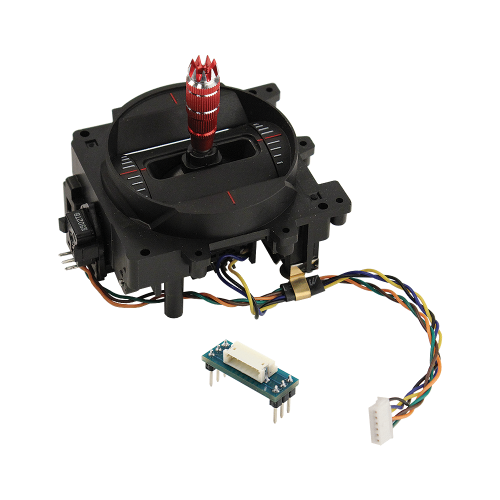

Package Includes:
- 1 x Gimbal Joystick
- 2 x 3-pin headers
- 1 x 1.5 mm 6-connector socket
- 1 x Adapter board PCB

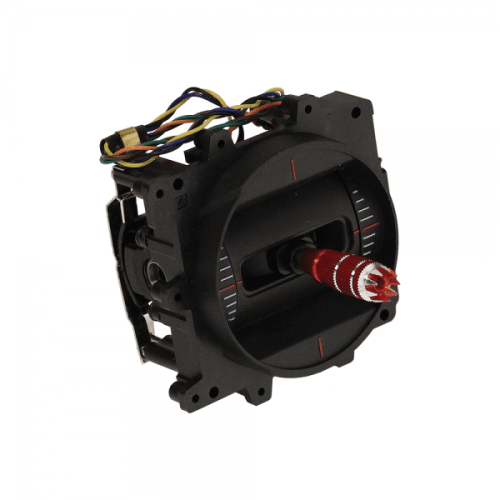

Parallax 27808 Gimbal Joystick with Adapter
- Brand: Parallax Inc.
- Product Code:Plx-27808-Gimbal-Joystick
- Reward Points:23
- Availability:Out Of Stock
-
रo 2,380.00
- Price in reward points:2380
-
- 5 or more रo 2,360.00
- 15 or more रo 2,340.00
- 30 or more रo 2,320.00
- 65 or more रo 2,305.00
