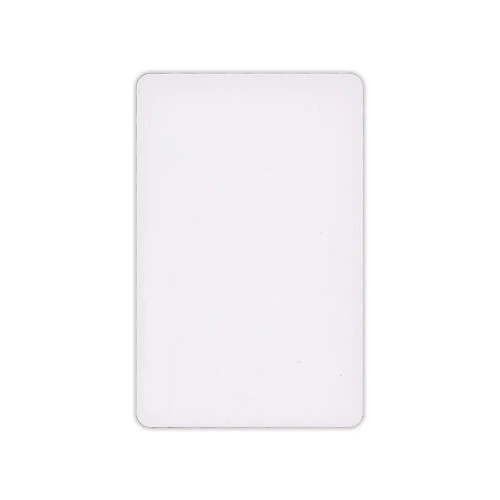

This RFID Read/Write transponder tag is part of the EM Microelectronic-Marin SA EM4x50 family and is designed to work with our RFID Read/Write Module, Serial (#28440). Each tag contains a unique, read-only serial number (one of 2^32, or 4,294,967,296 possible combinations) and 116 bytes of user data area stored in a non-volatile EEPROM (Electrically Erasable Read Only Memory). The user data area can be optionally secured with a 32-bit password to allow only authorized read and write operations.

See our RFID Module & Tag Compatibility Chart here.

Features:

Thin package makes it ideal for access badge applications
Both sides are fully printable with offset, thermo-transfer and dye sublimation printing
Designed to resist common stress known from access control and time attendance systems
EM Microelectronic-Marin SA EM4x50 family chip
125 kHz operating frequency
Dimensions: 54 x 85 mm (2.125 x 3.365 in)

Applications:

Room access
User authentication
User data storage

Notes:

These tags are NOT compatible with the read-only devices RFID Card Reader – Serial (#28140) or RFID Card Reader – USB (#28340).
Not recommended for use in direct sunlight. Use RFID R/W Round Tags instead, as they are made with a more rugged outer casing.
In accordance with U.S. Patent Nos. RE40,145; 5,817,207; 6,036,099; 6,214,155; 6,514,367; and 6,557,766.

Documentations:

Package Includes:
