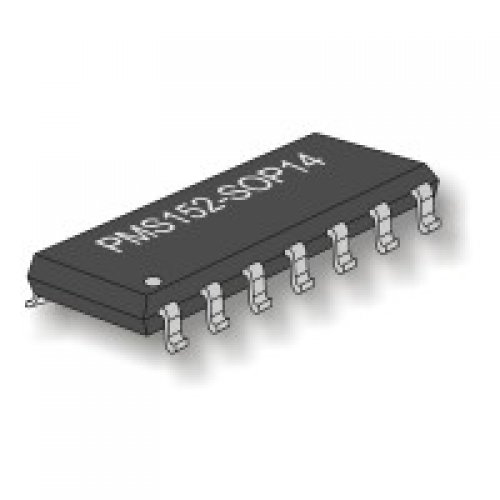

The PMS152 family is an IO-Type, fully static, OTP-based CMOS 8-bit microcontroller. It employs RISC architecture and all the instructions are executed in one cycle except that some instructions are two cycles that handle indirect memory access.

Special Features :

General purpose series
Please don’t apply to AC RC step-down powered, high power ripple or high EFT requirement application
Operating temperature range: -20°C ~ 70°C

System Features :

1.25KW OTP program memory
80 Bytes data RAM
One hardware 16-bit timer
One hardware 8-bit timers with 6/7/8-bit PWM generation
One set triple 11bit SuLED (Super LED) PWM generators and timers
One hardware comparator
14 IO pins with optional pull-high resistor
Three different IO Driving capability group to meet different application requirements
- PB3, PB5, PB7 Drive/ Sink Current= 5mA/30mA
- Other IOs (except PA5) Drive/ Sink Current = 5mA/10mA
- PA5 Sink Current = 10mA
Every IO pin can be configured to enable wake-up function
Clock sources: IHRC, ILRC & EOSC(XTAL mode, Reserved1)
For every wake-up enabled IO, two optional wake-up speed are supported: normal and fast
Eight levels of LVR: 4.5V, 3.5V, 3.0V, 2.75V, 2.5V, 2.2V, 2.0V and 1.8V
Two selectable external interrupt pins: PA0/PB5, PB0/PA4
Band-gap circuit to provide 1.20V reference voltage
1.3. CPU Features
One processing unit operating mode
86 powerful instructions
Most instructions are 1T execution cycle
Programmable stack pointer to provide adjustable stack level
Direct and indirect addressing modes for data access. Data memories are available for use as an index pointer
of Indirect addressing mode
IO space and memory space are independent
