Allwinner H5 is pin-to-pin compatible with Allwinner H3, so the PCB is exactly the same. The upgrade brings slightly better CPU performance, as well as – in theory – better GPU performance, but the latter might not be usable right now (in Linux) due to a lack of software support. Power consumption might be a little higher too (TBC).
-
Cpu
- H3:Quad-core Cortex-A7
- H5: Quad-core Cortex-A53
-
GPU
- H3: Mali400MP2 GPU
- H5: Mali450 GPU
- System Memory – 512 MB DDR3 SDRAM
- Storage – 8GB eMMC flash + micro SD card slot
- Video Output – HDMI port
- Connectivity – 802.11 b/g/n WiFi + Bluetooth 4.0 LE (Ampak AP6212) with u.FL antenna connector and external antenna
- USB – 1x micro USB OTG port
- Camera – MIPI CSI port
- Expansion headers – Unpopulated 26-pin “Raspberry Pi B+” header + 13-pin header with headphone, 2x USB 2.0, TV out, microphone and IR receiver signals
- Debugging – 3-pin serial console header
- Misc – 2x LEDs for power and status
- Power Supply – 5V via micro USB port
- Dimensions – 48 x 46 mm
- Weight – 20 grams

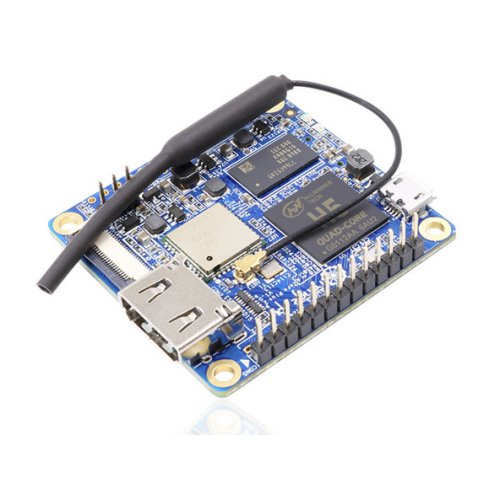

Orange Pi Zero Plus 2
- Brand: Orange Pi
- Product Code:OPi-Orange-Pi-Zero-Plus2
- Reward Points:30
- Availability:Order now and get it in 25 days
-
रo 2,985.00
- Price in reward points:2985
Available Options
Related Products
Tags: Orange Pi, Zero, Plus, 2 H5, Quad-core, Wifi, Bluetooth, mini, PC
