It’s an open-source single-board computer. It can run Android 4.4 , Lubuntu, Debian, Rasberry Pi Image It uses the AllWinner H3 SoC, and has 2GB DDR3 SDRAM
Who’s it for?
Orange Pi Plus 2 E is for anyone who wants to start creating with technology – not just consuming it. It's a simple, fun, useful tool that you can use to start taking control of the world around you.
What can I do with Orange Pi Plus 2 E?
You can use it to build…
- A computer
- A wireless server
- Games
- Music and sounds
- HD video
- A speaker
- Android
- Scratch
- Pretty much anything else, because Orange Pi Plus is open source
Hardware specification |
||
|
CPU |
H3 Quad-core Cortex-A7 H.265/HEVC 4K |
|
|
GPU |
·Mali400MP2 GPU @600MHz
·Supports OpenGL ES 2.0
|
|
|
Memory (SDRAM) |
2GB DDR3 (shared with GPU) |
|
|
Onboard Storage |
TF card (Max. 64GB) /?MMC card slot 16GB EMMC Flash |
|
|
Onboard Network |
10/100/1000M Ethernet RJ45 |
|
|
Onboard WIFI |
Realtek RTL8189ETV, IEEE 802.11 b/g/n |
|
|
Video Input |
A CSI input connector Camera: Supports 8-bit YUV422 CMOS sensor interface Supports CCIR656 protocol for NTSC and PAL
Supports SM pixel camera sensor
Supports video capture solution up to 1080p@30fps |
|
|
Audio Input |
MIC |
|
|
Video Outputs |
Supports HDMI output with HDCP Supports HDMI CEC Supports HDMI 30 function Integrated CVBS Supports simultaneous output of HDMI and CVBS |
|
|
Audio Output |
3.5 mm Jack and HDMI |
|
|
Power Source |
DC input, USB OTG input don't supply power | |
|
USB 2.0 Ports |
Three USB 2.0 HOST, one USB 2.0 OTG |
|
|
Buttons |
Power button: Next to Reset button UBoot button (optional): Behind HDMI connector |
|
|
Low-level peripherals |
40 Pins Header,compatible with Raspberry Pi B+ | |
|
GPIO(1x3) pin |
UART,ground. |
|
|
LED |
Power led & Status led |
|
|
Key |
IR input,UBOOT,POWER |
|
|
Supported OS |
Android, Lubuntu, Debian, Rasberry Pi Image |
|
Interface definition |
||
|
Product size |
108mm × 67mm |
|
|
Weight |
52g |
|
| Orange Pi™ is a trademark of the Shenzhen Xunlong Software CO., Limited | ||

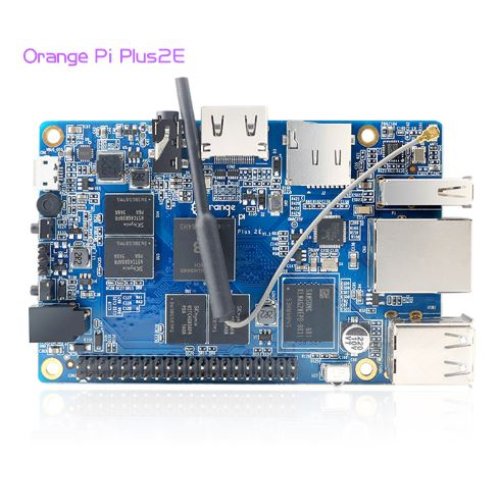

Orange Pi Plus 2E - Single board Computer
- Brand: Orange Pi
- Product Code:OPi-Orange-Pi-Plus-2E
- Reward Points:45
- Availability:Out Of Stock
-
रo 4,485.00
- Price in reward points:4485
