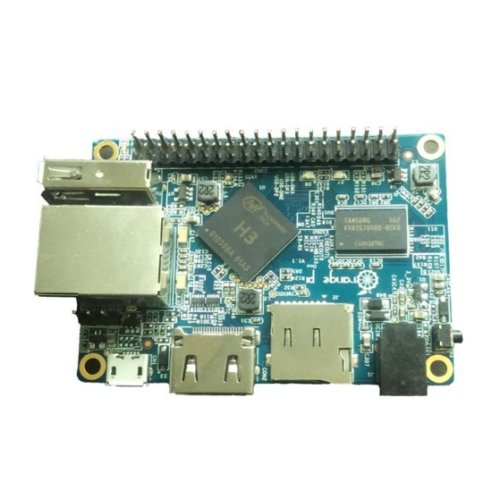

This is an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian, Rasberry Pi Image, as well as the banana pi Image. It uses the AllWinner H3 SoC, and has 512MB DDR3 SDRAM
What can I do with Orange Pi One?
Build…
- A computer
- A wireless server
- Games
- Music and sounds
- HD video
- A speaker
- Android
- Scratch
- Pretty much anything else, because Orange Pi One is open source
Who’s it for?
Orange Pi One is for anyone who wants to start creating with technology – not just consuming it. It's a simple, fun, useful tool that you can use to start taking control of the world around you.
Hardware specification |
||
|
CPU |
H3 Quad-core Cortex-A7 H.265/HEVC 4K |
|
|
GPU |
·Mali400MP2 GPU @600MHz |
|
|
Memory (SDRAM) |
512MB DDR3 (shared with GPU) |
|
|
Onboard Storage |
TF card (Max. 64GB) / MMC card slot |
|
|
Onboard Network |
10/100M Ethernet RJ45 |
|
|
Video Input |
A CSI input connector Camera: |
|
|
Video Outputs |
Supports HDMI output with HDCP |
|
|
Power Source |
DC input can supply power, but USB OTG input don’t supply power |
|
|
USB 2.0 Ports |
Only One USB 2.0 HOST, one USB 2.0 OTG |
|
|
Buttons |
Power Button(SW4) |
|
|
Low-level peripherals |
40 Pins Header,compatible with Raspberry Pi B+
|
|
|
LED |
Power led & Status led |
|
|
Key |
POWER |
|
|
Supported OS |
Android Ubuntu, Debian, Rasberry Pi Image |
|
Interface definition |
||
|
Product size |
69 mm × 48mm |
|
|
Weight |
36g |
|
Orange Pi One
- Brand: Orange Pi
- Product Code:OPi-Orange-Pi-One
- Reward Points:17
- Availability:Discontinued
-
रo 1,685.00
- Price in reward points:1685
