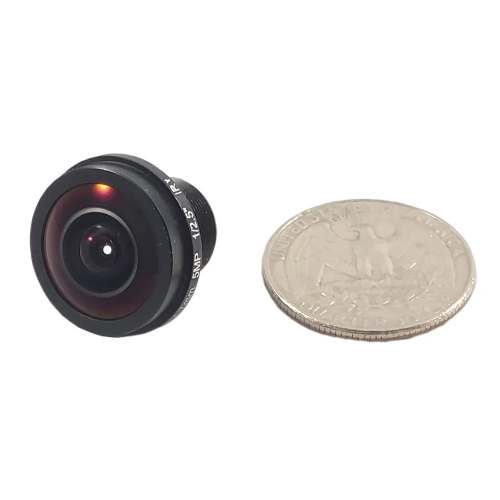

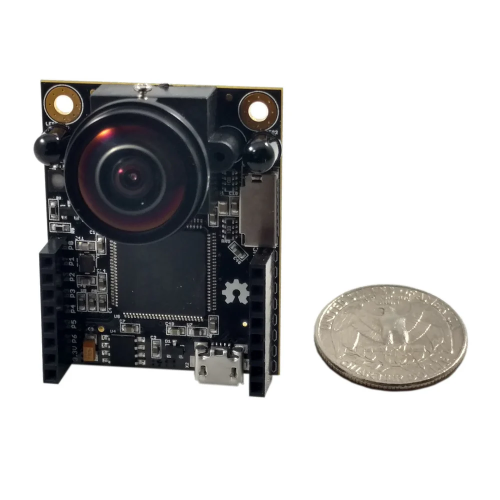

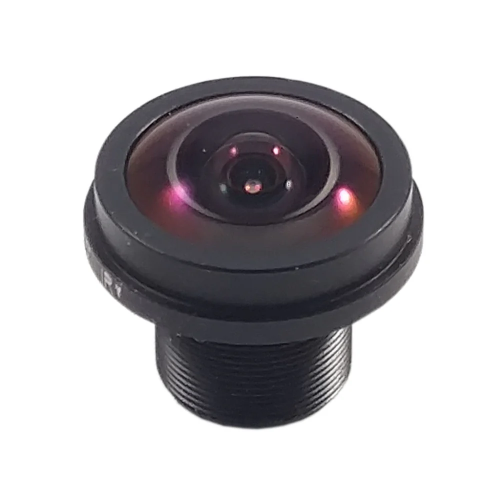

This lens gives your OpenMV Cam the ability to see a wider field-of-view (FOV). The standard lens that ships with your OpenMV Cam has about a 70° FOV which is good, but, not great for security applications. This lens has about a 100° FOV so your OpenMV Cam can much more around itself.

Applications:

The Ultra Wide Angle Lens is great for security applications where you want to see a wide field-of-view. For example, by using the Ultra Wide Angle Lens your OpenMV Cam can easily detect motion in an entire room using frame differencing without having to be mounted far away.

Specifications:

• Focal Length: 1.7mm
• Aperture: F2.0 (185.0° FoV per spec)
• Format: 1/2.5"
• Mount: M12*0.5
• Angle (FOV): H = 99.0°, VFOV = 81.9°
• IR Cut Filter: 650nm (removable)
• Dimensions
• Length: 20 mm
• Width: 20 mm
• Height: 19 mm
• Temperature Range
• Storage Temperature: -20°C to 80°C
• Operating Temperature: -20°C to 80°C
• Shipping Information
• Country of Origin: China
• HS Code: 9002.11
• Weight: 7 g
• UPC: 638126314680
• SKU: OMV-WIDE-IR-LENS

Documentations:

• Ultra Wide Angle Lens Model


Package Includes:

• 1 x OpenMV Ultra Wide Angle Lens
