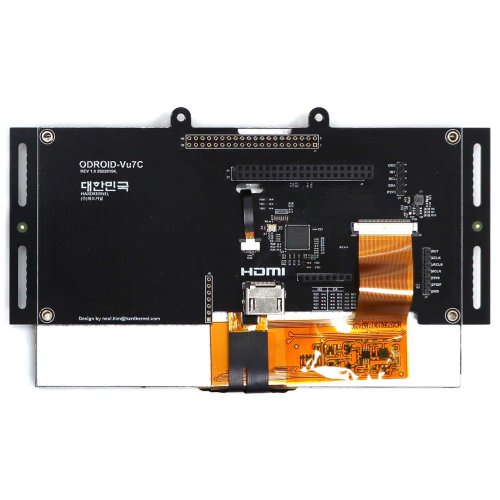

Add a display on an ODROID-C4 without any cable by plugging it into the 40pin female header on the back of ODROID-VU7C, and connect the HDMI port on C4 to the one on the VU7C using a HDMI link board. You need a type A-A HDMI cable to use it with an N2+.

The VU7C is designed to extend the IO ports on the C4 and N2+ while using the display. The 7pin header on VU7C is for I2S. Add a Boom Bonnet kit using 7pin cable. The 5pin header on VU7C is for I2C.  An RTC Shield is ready to use.

Specifications:

• 7-inch TFT-LCD
• 1024(H) x 3(RGB) x 600(V) pixels hardware resolution
• Screen Dimensions : 164.9(W) x 100.0(H)
• Viewable screen size : 154.21 x 85.92 mm (active area)
• 5 finger capacitive touch input
• Power consumption : 2.4W ± 10% (50% duty cycle) / 4.2W ± 10% (100% duty cycle)
• 7 Pin Header for I2S / 5 Pin Header for I2C

Note:

The supplier of the product has no replacement and/or refund policy as part of their product warranty/guarantee. Furthermore, the repair cost and the cost of shipping to and fro from South Korea has to be borne. As Fab.to.Lab is merely an intermediary we extend the exact same warranty terms to all customers of Harkernel.

Please find more details here: Supplier warranty terms and conditions: https://www.hardkernel.com/agreement/

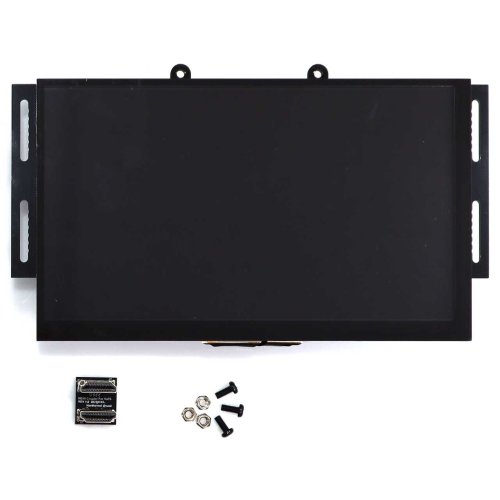

Package includes:

• 1 x 7inch display
• 3 x 3.5mm screws
• 3 x Hex nuts
• 1 x HDMI link board (HDMI Coupler)
