Nooelec UWB Surveyor Antenna - Extremely Wide Bandwidth, Biconical, Low-Profile PCB Antenna with a Frequency Range of 700MHz to 10GHz and an Average Gain of 3dBi. SMA Female Connector

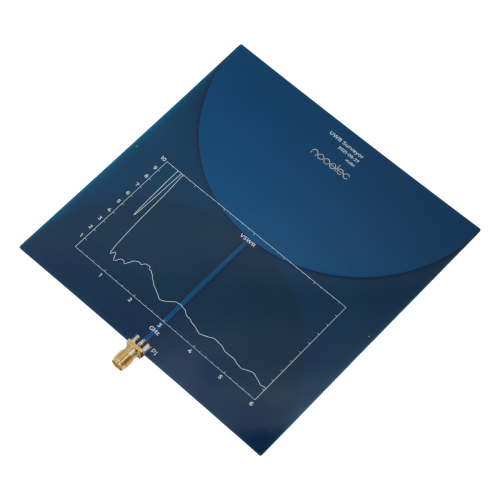

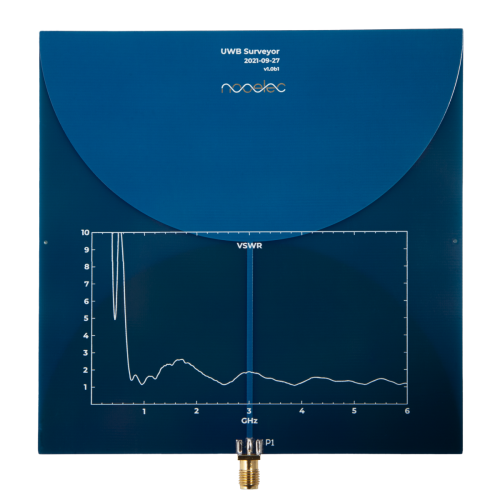

UWB Surveyor is an extremely wide bandwidth antenna designed using PCB technology for use in TX, RX, and TRX applications. It provides a low profile, lightweight (only 26 grams), and cost-effective solution for use in software-defined radio applications as well as for quick EMC testing, wideband signal analysis, large bandwidth spectrum surveying, and UWB technology-related applications such as sensors, indoor localization, and IoT.

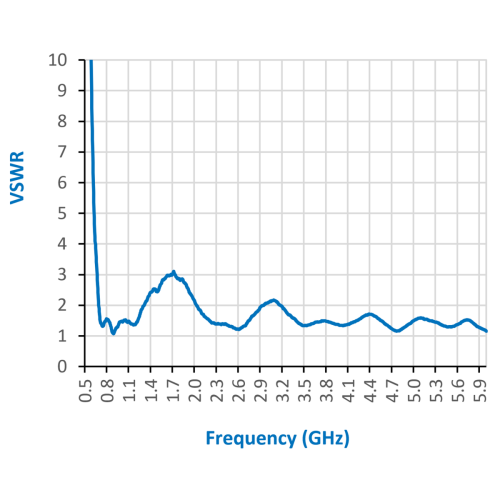

The antenna provides a symmetrical omnidirectional linear polarization radiation pattern across a wide range of frequencies and a variable gain throughout the operating range, with an average of 3dBi. It can be deployed for indoor and outdoor use and matched for 50Ω systems. The size is only 12cm x 12cm with a maximum thickness equal to that of the SMA connector!

Documentation:

Package includes:

  • P1 x Nooelec UWB Surveyor Antenna

Write a review

Please login or register to review

Nooelec UWB Surveyor Antenna

  • Brand: Nooelec
  • Product Code:NE-UWB-Surveyor-Antenna
  • Reward Points:31
  • Availability:In Stock
  • रo 3,155.00

  • Price in reward points:3155

  • 5 or more रo 3,130.00
  • 10 or more रo 3,105.00
  • 25 or more रo 3,080.00
  • 45 or more रo 3,055.00
