This premium RTL-SDR was designed, developed and fabricated by Nooelec in the USA and Canada. It allows you to turn your computer, phone or tablet into a radio scanner/ham radio receiver that can receive nearly all RF signals! Compatible with Windows, Mac OS, Linux, and Android.

  • NESDR SMArt RTL-SDR v5 can be used for the reception of broadcast AM radio, broadcast FM radio, shortwave radio, CB radio, public security radio, trunked radio, air traffic control, ACARS (plane-ground communications), ADS-B (plane tracking), AIS (ship tracking), POCSAG (pagers), NOAA and GOES weather satellites (weather images), weather balloons, radiosondes, DAB radio, DVB-T video, Inmarsat, Iridium, and so much more!
  • The best-performing low-cost RTL-SDR available anywhere! Compared with RTL-SDR v3, HF SNR is improved by up to 15dB, VHF & UHF SNR is improved by up to 6dB, tuning accuracy is improved by an average of 4x, and the frequency range is expanded all the way down to 100kHz.
  • v5 has a frequency capability of 100kHz to 1.75GHz and up to 3.2MHz of instantaneous bandwidth. HF reception below 25MHz is accomplished with direct sampling and requires a suitable antenna. We recommend using a Balun One Nine to make a DIY long wire or dipole antenna (sold separately).
  • Though the direct sampling implementation of NESDR SMArt v5 is much better than any other RTL-SDR, we still recommend using an upconverter like the Ham It Up for a more fulfilling HF experience (sold separately).

With a much narrower form factor than RTL-SDR v3, you can run multiple NESDR SMArt v5 side-by-side with any USB-compliant device, including tightly-spaced embedded devices like the Raspberry Pi.

Specifications:

  • RTL2832U Demodulator/USB interface IC
  • R820T2/R860 tuner IC
  • 0.5PPM, ultra-low phase noise TCXO
  • RF-suitable voltage regulator
  • Shielded primary inductor
  • Integrated custom heatsink
  • Female SMA antenna input
  • High-quality black brushed aluminum enclosure
  • Antenna Specifications:
    • Wide base with super-strong magnet within base for easy mounting
    • Low-loss RG58 feed cable
    • 2m (6.5') cable, twice as long as most low cost SDR antennas
    • Male SMA connector for direct connection to the SDR or our other SMA-connected accessories
  • TCXO Specifications:
    • Frequency stability: 0.5PPM (max)
    • Phase noise @1kHz offset: -138dBc/Hz (or better)
    • Phase noise @10kHz: -150dBc/Hz (or better)
    • Phase noise @100kHz: -152dBc/Hz (or better)
  • General Info
    • SKU: 100700
    • UPC: 0616469145857
    • USB Interface IC: RTL2832U
    • Tuner IC R820T2
    • Frequency Range (approximate): 0.1MHz - 1750MHz
    • TCXO clock: Yes
    • Antenna Connector Type: SMA Female
    • Antenna Included? Yes
    • Remote Included? No
    • Additional Accessories: 3 antenna masts for included antenna base

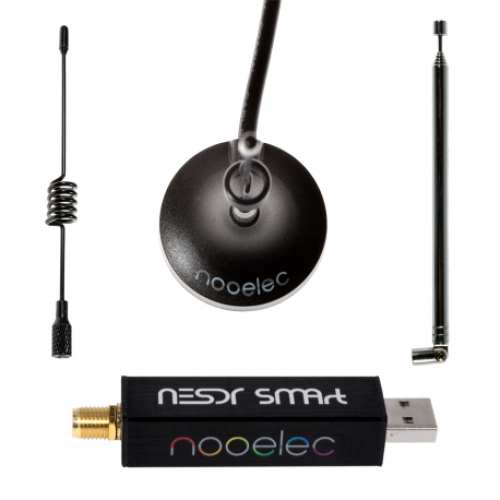

Package Includes:

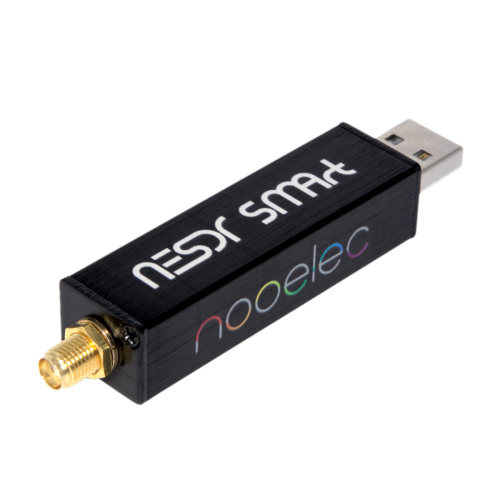

  • 1 x NESDR SMArt SDR in black brushed aluminum enclosure
  • 1 x Antenna base w/ 2m RG58 cable
  • 1 x Telescopic antenna mast (variable frequency)
  • 1 x 433MHz (ISM) antenna mast (fixed frequency)
  • 1 x UHF antenna mast (fixed frequency)

Write a review

Please login or register to review

Nooelec NESDR SMArt v5 Bundle - HF/VHF/UHF (100kHz-1.75GHz) RTL-SDR Kit with 3 Antennas. RTL2832U & R820T2-Based Software Defined Radio

  • Brand: Nooelec
  • Product Code:NE-SDR-SMArt-v5-Bundle
  • Reward Points:58
  • Availability:In Stock
  • रo 5,799.00

  • Price in reward points:5799

  • 3 or more रo 5,752.00
  • 5 or more रo 5,706.00
  • 13 or more रo 5,659.00
  • 25 or more रo 5,613.00
