• Nooelec NESDR SMArTee XTR Bundle - Premium RTL-SDR

The integrated, highly-regulated 3.3v bias-tee is ready to power your RF accessories--no hardware or software modifications are required to activate the bias-tee. The bias-tee is protected by an automatically resetting fuse, to ensure your investment is safe from accidental short-circuits of the RF input.

Compared to R820T-based devices, this E4000-based SDR excels at sensitivity at <500MHz and >1500MHz, and is capable of far higher frequencies--up to approximately 2350MHz. There is a small gap in frequency capability near 1100MHz. As such, we do NOT recommend this device for ADS-B usage. For ADS-B applications, consider the NESDR SMArt instead, NooElec SKU 100700.

SDR Specifications:

✔ RTL2832U Demodulator/USB interface IC and E4000 tuner IC
✔ Integrated, always-on bias-tee (3.3V, 100mA max)
✔ 0.5PPM, ultra-low phase noise TCXO
✔ 2 RF-suitable voltage regulators
✔ Shielded primary inductor
✔ Integrated custom heatsink
✔ 2 silicone pads
✔ Female SMA antenna input
✔ High-quality silver brushed aluminum enclosure
✔ Frequency capability approximately 65MHz-2300MHz, with small frequency gap near 1100MHz

TCXO Specifications:

✔ Frequency stability: 0.5PPM (max)
✔ Phase noise @1kHz offset: -138dBc/Hz (or better)
✔ Phase noise @10kHz: -150dBc/Hz (or better)
✔ Phase noise @100kHz: -152dBc/Hz (or better)

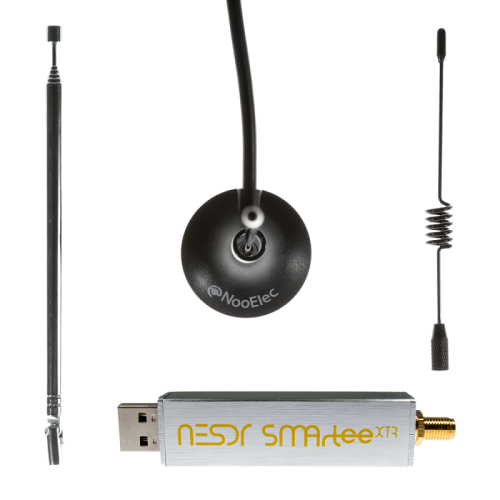

Package Included:

  • NESDR SMArTee XTR SDR in silver brushed aluminum enclosure
  • Antenna base w/ 2m RG58 cable
  • Telescopic antenna mast (variable frequency capability)
  • 433 MHz (ISM) antenna mast (10.5", fixed frequency)
  • UHF antenna mast (4.5", fixed frequency)

Write a review

Please login or register to review

Nooelec NESDR SMArTee XTR Bundle - Premium RTL-SDR

  • Brand: Nooelec
  • Product Code:NE-SDR-AI-Mini2-Plus
  • Reward Points:56
  • Availability:In Stock
  • रo 5,555.00

  • Price in reward points:5555

  • 3 or more रo 5,515.00
  • 5 or more रo 5,470.00
  • 15 or more रo 5,425.00
  • 25 or more रo 5,380.00
