This custom Nooelec SDR is a modified DVB-T USB dongle tuned for SDR usage, including a high-accuracy, Japanese fabricated, GPS-rated 0.5PPM TCXO crystal, and improved capacitors and inductors compared to generic devices. Full compatibility with a large array of software packages, such as MATLAB®, HDSDR, SDR Touch, SDR#, Planeplotter--too many to list.

The perfect device for learning software defined radio, on the cheap. Amateur radio, ADS-B, police & fire scanning, trunking, satellite images--you name it, this little guy can probably do it. Outperforms many devices 10x its cost!

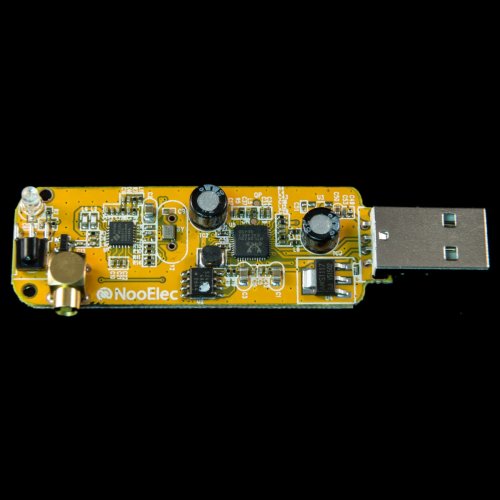

These units are based on the R820 (R820T2) tuner IC made by Rafael Micro. This provides substantial performance improvements over R820T in both lab and real-life usage scenarios.  They have a frequency capability of approximately 25MHz-1750MHz, though this can vary somewhat from unit to unit. There is also an RTL2832 (RTL2832U) IC on board of course, which acts as the demodulator and USB interface.

The connector type on the antenna and USB board is MCX--male MCX on the antenna, female MCX on the SDR. There are plenty of adapter and adapter cables available in our store if you want to connect your favorite antenna!

Want HF too? You can modify the dongle for HF reception, but it's really a bad way of doing things. If you would like to do this please contact us and we'll be happy to walk you through it. However, we strongly recommend you take a look at the upconverter available in the link above which will let you listen all the way down to 100kHz or lower with impeccable sensitivity

Specifications:

  • USB Interface ICRTL2832U
  • Tuner ICR820T2
  • Frequency Range (approximate)25MHz - 1750MHz
  • TCXO clockYes
  • Antenna Connector TypeMCX
  • Antenna Included? Yes
  • Remote Included? No
  • Additional AccessoriesMCX to SMA adapter, suction antenna mount

Documents:

Warranty: 2years

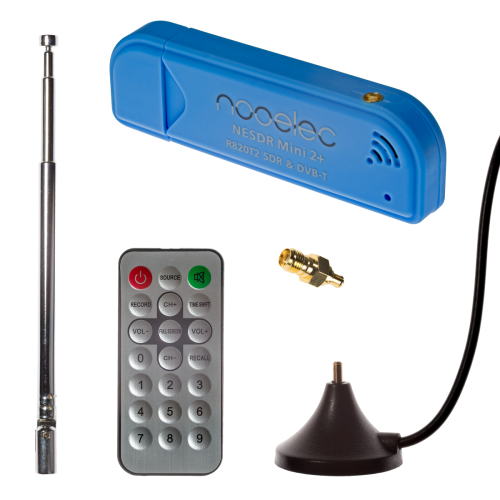

Package Includes:

  • 1 x NooElec NESDR Mini 2+0.5PPM TCXO USB RTL-SDR Receiver (RTL2832 + R820T2)

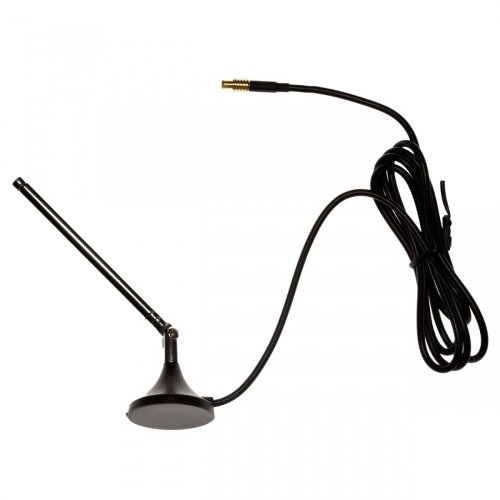

  • 1 x Antenna

Write a review

Please login or register to review

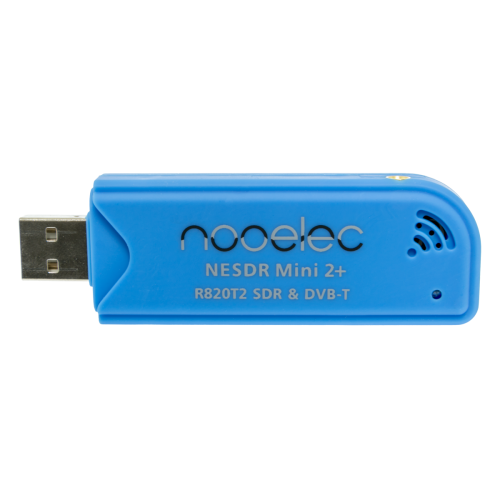

NooElec NESDR Mini 2+0.5PPM TCXO USB RTL-SDR Receiver (RTL2832 + R820T2) with Antenna

  • Brand: Nooelec
  • Product Code:NE-SDR-Smart-Mini-2-Plus
  • Reward Points:45
  • Availability:In Stock
  • रo 4,545.00

  • Price in reward points:4545

  • 3 or more रo 4,509.00
  • 7 or more रo 4,473.00
  • 16 or more रo 4,436.00
  • 33 or more रo 4,400.00
