This premium RTL-SDR was designed, developed and fabricated in order to implement a wide array of feature requests. Compared to R820T-based devices, this E4000-based SDR excels at sensitivity at <500MHz and >1500MHz, and is capable of far higher frequencies, up to approximately 2350MHz. There is a small gap in frequency capability near 1100MHz. As such, we do NOT recommend this device for ADS-B usage.
Specifications:
-
SDR:
- RTL2832U Demodulator/USB interface IC
- E4000 tuner IC
- 0.5PPM, ultra-low phase noise TCXO
- 2 RF-suitable voltage regulators
- Shielded primary inductor
- Integrated custom heatsink
- 2 silicone pads
- Female SMA antenna input
- High-quality silver brushed aluminum enclosure
- Frequency capability approximately 65MHz-2300MHz, with small frequency gap near 1100MHz
-
TCXO:
- Frequency stability: 0.5PPM (max)
- Phase noise @1kHz offset: -138dBc/Hz (or better)
- Phase noise @10kHz: -150dBc/Hz (or better)
- Phase noise @100kHz: -152dBc/Hz (or better)
Documents:
Package Includes:
- 1 x NESDR SMArt XTR SDR in silver brushed aluminum enclosure

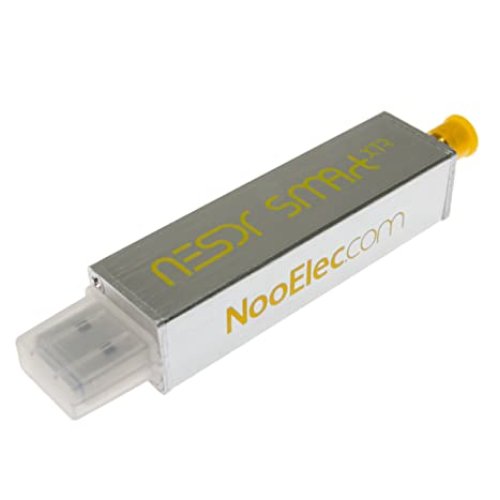

Nooelec NESDR SMArt XTR SDR - Premium RTL-SDR
- Brand: Nooelec
- Product Code:NE-NESDR-SMArt-XTR
- Reward Points:56
- Availability:In Stock
-
रo 5,560.00
- Price in reward points:5560
-
- 2 or more रo 5,515.00
- 5 or more रo 5,470.00
- 13 or more रo 5,425.00
- 27 or more रo 5,380.00
