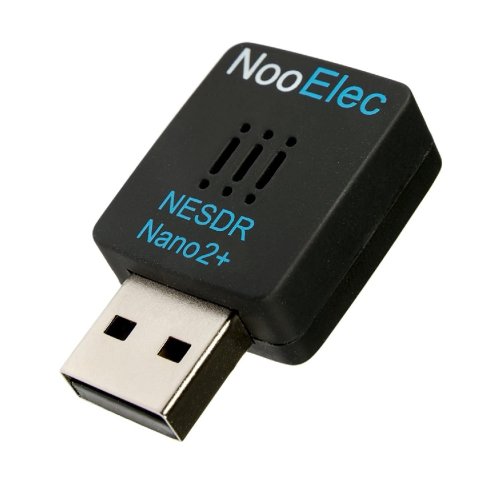

• Nooelec NESDR Nano 2+: Tiny RTL-SDR USB Set with 0.5PPM TCXO, R820T2 Tuner and Antenna
The NESDR Nano 2+ are custom-made by Nooelec for SDR applications, though they will still function as quality DVB-T receivers where signals permit. The enclosure was also re-designed to assist in maintaining lower temperatures than the previous generation.

The tiny size and 24/7 capability makes the Nano 2+ perfect for embedded applications and the dimension is 24mm x 21mm x 8mm (15/16" x 13/16" x 5/16")
The Nano 2+ contains a new custom TCXO fabricated exclusively for Nooelec. Important TCXO specifications:
  • Frequency stability: 0.5PPM (max)
  • Phase noise @1kHz offset: -138dBc/Hz (or better)
  • Phase noise @10kHz: -150dBc/Hz (or better)
  • Phase noise @100kHz: -152dBc/Hz (or better)
This is, by far, the highest performance TCXO available in any low-cost SDR
The low-ESR NP0/C0G capacitors and high-Q inductors we use for production assist in lowering the noise floor, increase stability and improve longevity.
The NESDR Nano 2+ is based on the R820T2 tuner IC made by Rafael Micro, which means an approximate tuning range of 25MHz-1700MHz and improved selectivity and sensitivity in most frequency ranges versus R820T-based SDRs. There is also an RTL2832 (RTL2832U) IC on board of course, to provide basic demodulation and USB interface functionality.
Full compatibility with a wide variety of popular SDR software packages, such as Matlab, HDSDR, SDR Touch, Planeplotter, SDR#--too many to list, really. We're talking Windows, Mac, Linux, Android, Raspberry Pi...you'd be hard pressed to find somewhere you can't use these!

Package Includes:
  • 1 x Nooelec NESDR Nano 2+: Tiny RTL-SDR USB Set with 0.5PPM TCXO, R820T2 Tuner & Antenna

Write a review

Please login or register to review

Nooelec NESDR Nano 2+: Tiny RTL-SDR USB Set with 0.5PPM TCXO, R820T2 Tuner and Antenna

  • Brand: Nooelec
  • Product Code:NE-NESDR-Nano-2+
  • Reward Points:45
  • Availability:In Stock
  • रo 4,545.00

  • Price in reward points:4545

  • 3 or more रo 4,509.00
  • 7 or more रo 4,473.00
  • 16 or more रo 4,436.00
  • 33 or more रo 4,400.00
