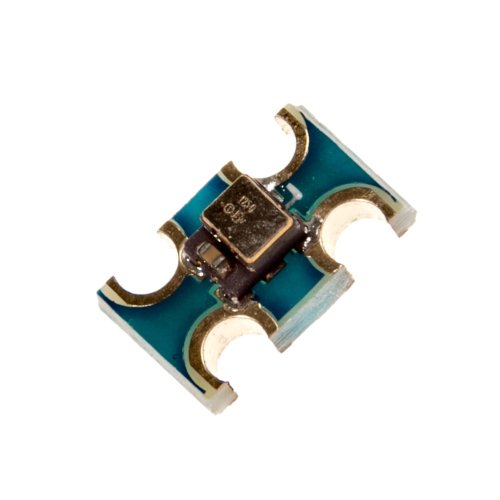

The TCXO is a custom 0.5PPM part made for us by our crystal partner in Taiwan. It has fantastic short-term and long-term stability and ultra-low phase noise. It is pre-soldered onto a carrier board to easily fit the dimensions of the existing clock on the Ham It Up.
To install, remove the crystal X1 from the PCB and install the module. Pin 1 is denoted in the product images. Line up pin 1 to the 'dot' near X1 on the PCB and solder.
Of course, this module can also be used in any application or project where a 125MHz TCXO is desired.
Documents:
Package Includes:
- 1 x Ham It Up - 125MHz 0.5PPM TCXO Upgrade Module for Ham It Up v1.2+
Ham It Up - 125MHz 0.5PPM TCXO Upgrade Module for Ham It Up v1.2+
- Brand: Nooelec
- Product Code:NE-Ham-It-Up-125MHz-v1.2+
- Reward Points:12
- Availability:In Stock
-
रo 1,255.00
- Price in reward points:1255
-
- 12 or more रo 1,245.00
- 25 or more रo 1,235.00
- 60 or more रo 1,225.00
- 120 or more रo 1,215.00
