Introduction

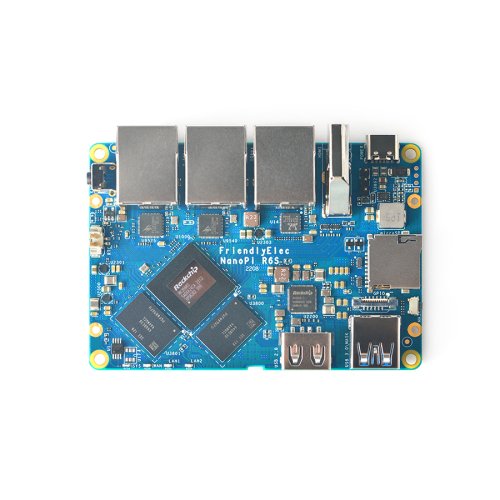

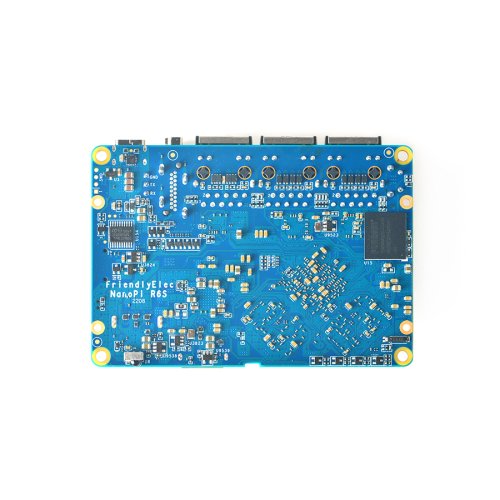

• The NanoPi R6S (as “R6S") is an open source and high performance platform developed and designed by FriendlyElec for edge computing. It has a dual-2.5G and a Gbps Ethernet ports. It is integrated with a Rockchip RK3588S CPU and 32GB eMMC flash. It supports multiple OS systems including FriendlyWrt, Android, Debian, Ubuntu and more. In addition it supports GPU and VPU acceleration.
• The R6S has rich hardware resources all on its compact size of 90 x 62 mm. FriendlyElec has released a carefully designed CNC housing for it. It has one HDMI port capable of decoding video streams of 8K@60fps H.265/VP9, 8K@30fps H.264 and more.
• The R6S has two USB ports and supports USB Type-C based PD power delivery which makes it a good power source for an external hard disk.
• The R6S is especially featured for enterprise applications such as mini machine vision systems that need multiple Ethernet ports, as well as platforms for electronic hobbyists to explore various possibilities.

Specifications:

• CPU:
• Model: Rockchip RK3588S
• Number of Cores: Quad-core ARM Cortex-A76 & Quad-core Cortex-A55 CPU
• Frequency: 4 x Cortex-A76 up to 2.4GHz & 4 x Cortex-A55 up to 1.8GHz
• GPU:
• Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2
• VPU:
• 8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder
• NPU:
• 6TOPs, supports INT4/INT8/INT16/FP16
• Memory:
•  RAM: 64-bit 8GB LPDDR4X at 2133MHz
• Storage:
• MicroSD Slot: MicroSD x1, support up to SDR104 mode
• Flash: 32GB eMMC, at HS400 mode
• Connectivity:
• Ethernet: Native Gigabit Ethernet x1, RTL8211F-CG chip
• PCIe 2.5G Ethernet Ethernet x2, RTL8125BG chip
• Video Output:
• HDMI: compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation
• support up to 7680x4320@60Hz
• Support RGB/YUV(up to 10bit) format
• USB:
• USB 3.0 Host x1: USB Type A
• USB 2.0 Host x1: USB Type A
• USB-C x1: Power input(5V/9V/12V/20V), support PD
• Pin-header:
• GPIO: 12-pin 0.5mm FPC connector
• with up to 1x SPI, up to 3x UARTs, up to 1x I2Cs, up to 8x GPIOs
• Debug: Debug UART x1, 3 Pin 2.54mm header, 3V level, 1500000bps
• LED:
• SYS LED(Red) x1
• WAN LED(Green) x1
• LAN1 LED(Green) x1
• LAN2 LED(Green) x1
• Button:
• MASK Button x1 for eMMC update
• User Button x1
• Others:
• RTC Battery: 2 Pin 1.27/1.25mm RTC battery input
• connector for low-power RTC IC HYM8563TS
• IR receiver x1 and the carrier frequency is 38Khz
• Fan Connector(ZH1.5-2A) x1, 5V
• Working Temperature: 0℃ to 70℃
• Power:
• DC USB-C, support PD, 5V/9V/12V/20V input
• OS Support:
• Android TV 12
• Debian 10 Desktop
• FriendlyWrt 22.03
• Ubuntu 22.04 LTS Desktop (Coming Soon)
• FriendlyCore Focal Lite(Base on Ubuntu 20.04)
• Kernel version:
• Linux-5.10-LTS
• U-boot-2017.09
• PCB:
• 8 Layer
• Weight: 55.1g（without Case) / 262g（with Case)
• Dimension: 62x90x1.6mm mm(without Case) / 68x94.5x30mm mm(with Case)

Package Includes:

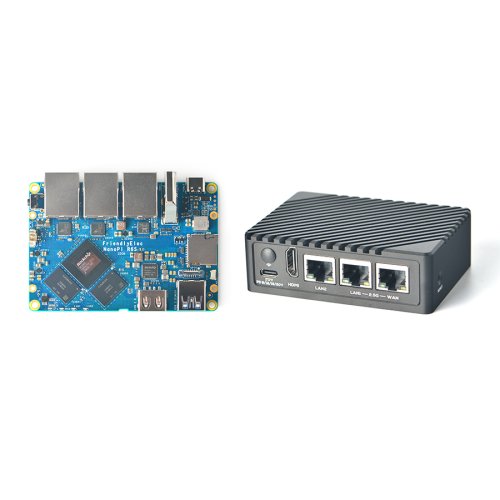

• 1 x NanoPi R6S Combo(with CNC case)

                                 (OR)

• 1 x NanoPi R6S Bare Board
