Specifications:

Hardware Spec:

  • CPU Model: Allwinner H3

                            Number of Cores: Quad-core

                             Frequency: 4*Cortex-A7 Up to 1.2GHz

  • Memory :RAM: 512MB
  • Storage: eMMC: 8GB/32GB

                                          MicroSD Slot: MicroSD*1 for external storage up to 128GB

  • Connectivity: WiFi: 802.11b/g/n

                                    Bluetooth: 4.0 dual-mode

                                     Antenna*1: IPX Connector

  • Audio: Audio input/output Port: 2.0mm pitch 4-pin header
  • Video: DVP Camera: 0.5mm pitch 24 pin FPC seat
  • USB Micro: USB*1: MicroUSB 2.0, OTG & Power In, Type A

                                USB Host: 2.54mm pin*2

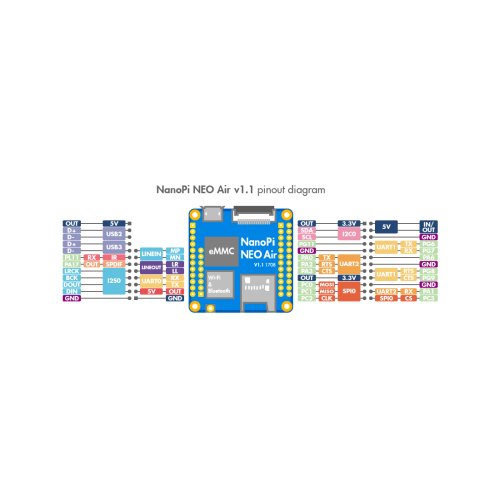

  • Pin-header: GPIO1: 2.54mm spacing 24pin,It includes UART,SPI,I2C,GPIO

                                   GPIO2: 2.54mm spacing 12pin,It includes USBx2,IR,SPDIF,I2S

                                    Serial Debug Port: 2.54mm pitch 4-pin-header

                                     Audio input/output Port: 2.0mm pitch 4-pin header

  • Others: Working Temperature: -20℃ to 70℃
  • Power: DC 5V/2A

OS/Software:

  • OS Support: FriendlyCore 16.04(based on UbuntuCore-16.04)

                                 FriendlyCore Focal (Base on Ubuntu 20.04)

                                FriendlyWrt 19.07.1(32-bit)

                                 Armbian

                                 DietPi

                                Lakka

                                Kali

  • Kernel version: Linux-4.14-LTS

                           U-boot-2017.11

  • uboot: supports fastboot to update uboot
  • FriendlyCore: RPI-monitor: check system status and information

                                    NPI-config: system configuration utility for setting passwords, language, timezone, hostname,

                                   SSH and auto-login, and enabling/disabling i2c, spi, serial, and PWM

                                  NetworkManager: manage network

                                 software utility: RPi.GPIO_NP to access GPIO pins

                                  welcome window with basic system information and status

                                  auto-login with user account "pi" with access to npi-config

                                   on first system boot file system will be automatically extended

                                 supports file system auto check and repair on system boot

                                 supports FriendlyElec's NanoHat-PCM5102A

                                 supports FriendlyElec's Matrix_-_2.8_SPI_Key_TFT

                                 supports file transfer with Bluetooth

                                 supports FriendlyElec BakeBit modules

                                  supports dynamic frequency scaling and voltage regulation

  • Ubuntu OLED: supports FriendlyElec's OLED module
  • Eflasher: supports flashing OS image to eMMC
  • Debian for NAS Dock: supports FriendlyElec's NAS Dock

Dimensions:

  • PCB: Six Layer
  • Dimension: 40*40mm

Documentations:

Package Includes:

  • 1 x NanoPi NEO AIR
  • 1 x 12x2pin double-row pin header
  • 1 x 12pin single-row pin header
  • 1 x 8pin single-row pin header
  • 1 x Antenna(Bonus)



Write a review

Please login or register to review

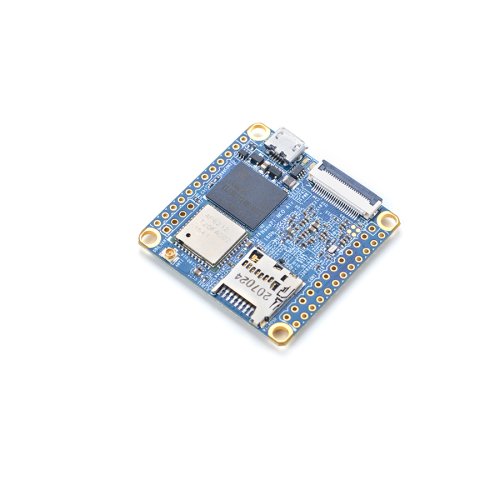

NanoPi NEO Air-LTS

  • Brand: FRIENDLYARM
  • Product Code:FARM-Nano-Pi-NEO-Air-LTS
  • Reward Points:27
  • Availability:In Stock
  • रo 2,704.00
  • रo 2,271.00

  • Price in reward points:2704

  • 5 or more रo 2,682.00
  • 11 or more रo 2,661.00
  • 26 or more रo 2,639.00
  • 53 or more रo 2,617.00
