Specifications:
Hardware Spec:
- CPU Model: Allwinner H3
Number of Cores: Quad-core
Frequency: 4*Cortex-A7 Up to 1.2GHz
- Memory RAM: 256MB/512MB
- Storage MicroSD Slot: MicroSD*1 for external storage up to 128GB
- Connectivity Ethernet: 10/100M Ethernet
- Audio Audio input/output Port: 5Pin, 2.0mm pitch pin header
- USB Micro: USB*1: MicroUSB 2.0, OTG & Power In, Type A
USB Host: 2.0 Type A*1, 2.54 mm pin*2
- Pin-header GPIO: 2.54mm pitch 36pin. It includes UART, SPI, I2C, IO etc
- Serial Debug Port: 2.54mm pitch 4-pin-header
- Audio input/output Port: 2.0mm pitch 5-pin header
- LED Power : LED(Red)*1
- System : LED(Green)*1
- Others : Working Temperature: -20℃ to 70℃
- Power : DC 5V/2A
OS Software:
- OS Support FriendlyCore 16.04(based on UbuntuCore-16.04)
FriendlyCore Focal (Base on Ubuntu 20.04)
FriendlyWrt 19.07.1(32-bit)
Armbian
DietPi
Lakka
Kali
- Kernel version Linux-4.14-LTS
U-boot-2017.11
Dimensions:
- PCB : 4 Layer
- Dimension: 40*40mm
Documentations:
Package Includes:

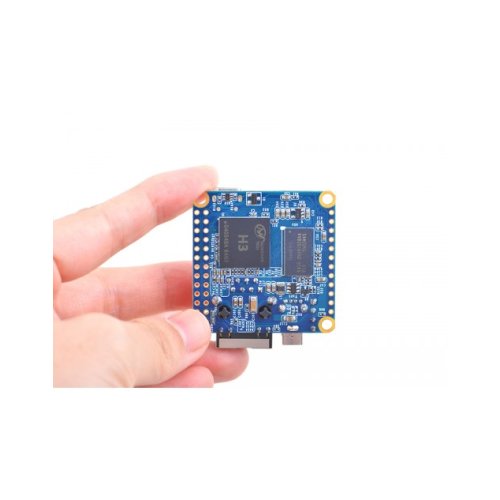

- 1 x NanoPi NEO-LTS
NanoPi NEO-LTS
- Brand: FRIENDLYARM
- Product Code:FARM-Nano-Pi-NEO-512MB
- Reward Points:18
- Availability:In Stock
- रo 1,860.00
-
रo 1,532.00
- Price in reward points:1860
-
- 8 or more रo 1,845.00
- 16 or more रo 1,830.00
- 40 or more रo 1,815.00
- 80 or more रo 1,800.00
