- Microsoft xbox360 Kinect original monochrome infrared camera module
- Max resolution 1280 x 1024 SXGA at 15fps
- Shutter type: Electronic rolling shutter (ERS)
- Optical size 1/2"
- ADC resolution 10-bit
- Supports image sizes: SXGA, VGA, QVGA, CIF, QCIF, etc
- Extreme High sensitivity for low-light operation
- Low operating voltage for embedded portable apps
- Standard I2C two wire interface
- Digital Video Port interface
- 34 pin golden finger FPC cable connector
- Easy integrate with STM32,FPGA,DSP,Arduino etc.
- User Guide – Arducam 1.3MP MT9M001 Stock Camera Breakout Board
- Sensor Datasheet – Micron MT9M001
- Application Note – Arducam MT9M001 Camera Module
- Arducam Documentation – Arducam Camera Breakout Boards
- Github – Arducam USB Camera Shield
- 1 x ArduCAM B0063 MT9M001 1.3Mp HD CMOS Infrared Camera Module with Adapter board

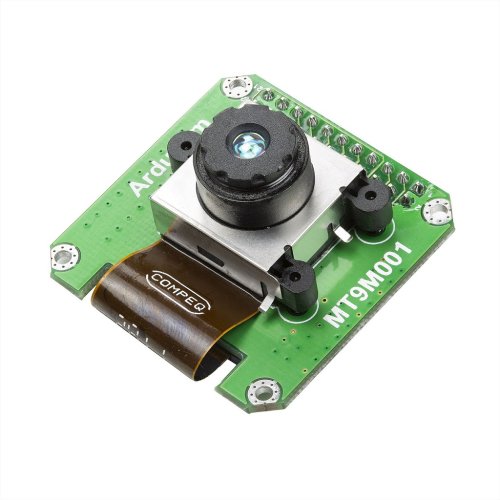

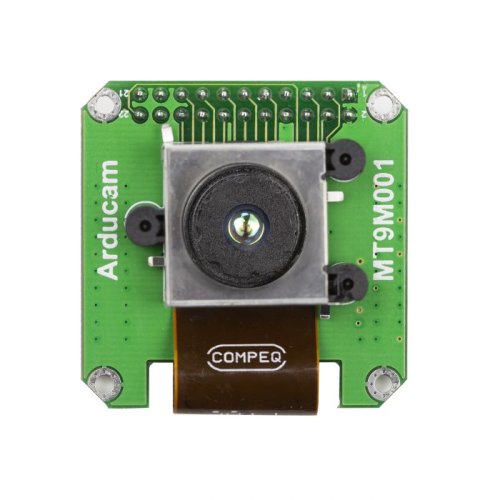

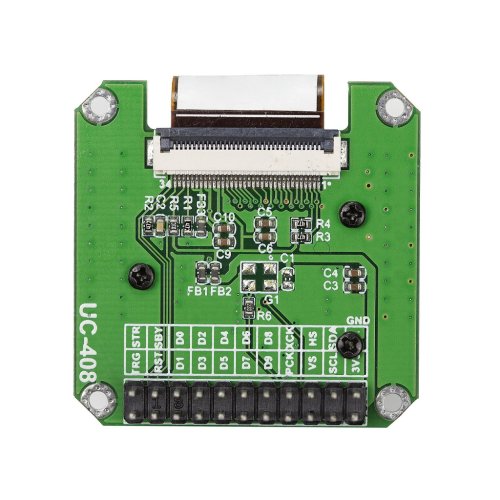

ArduCAM B0063 MT9M001 1.3Mp HD CMOS Infrared Camera Module with Adapter board
- Brand: ArduCAM
- Product Code:ArdC-B0063-MT9M001
- Reward Points:19
- Availability:In Stock
- रo 1,825.00
-
रo 1,598.00
- Price in reward points:1901
-
- 15 or more रo 1,810.00
- 35 or more रo 1,802.00
- 70 or more रo 1,795.00
