Note: The Arduino Nano ESP32 with headers is available for pre-order and is expected to be shipped in mid-to-late August.

The Arduino Nano ESP32 is a powerful addition to the Arduino ecosystem that brings the popular ESP32-S3 to the world of Arduino series and MicroPython programming. Whether you're a beginner stepping into the world of IoT or MicroPython or an advanced user looking to incorporate it into your next product, the Nano ESP32 is the perfect choice. It covers all your needs to kick-start your IoT or MicroPython project with ease. The Arduino Nano ESP32 combines the accessibility and support of the Arduino brand with the robust capabilities of the ESP32-S3.

The Arduino Nano ESP32 combines the accessibility and support of the Arduino brand with the robust capabilities of the ESP32-S3.

Even if you are a newbie or you have experience with Arduino and want to learn micro python, the Arduino Nano ESP32 is the best way to start.

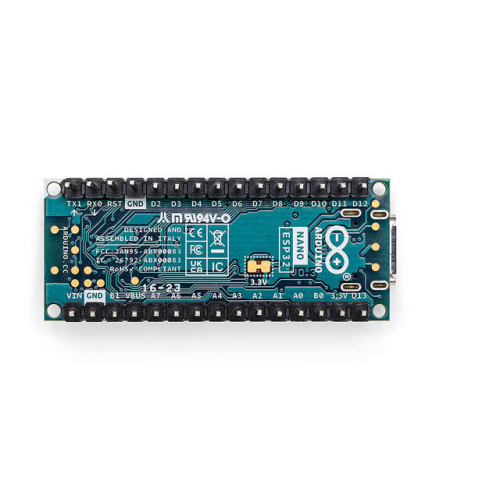

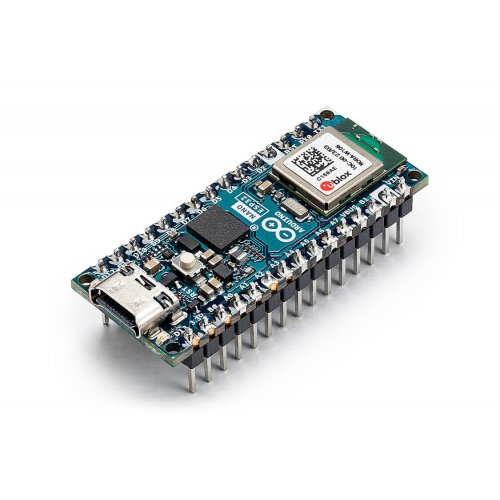

Figure: Board Overview of Arduino Nano ESP32 micro-controller

Features:

• Comes in the known Nano form factor with USB-C connector.
• Provides Micro python and Arduino support.
• Introduces a new architecture to the Arduino family covered by the support,documentation and community of Arduino.
• Provides Plug and Play debugging experience using the Arduino IDE 2
• Support Wi-Fi and Bluetooth

Specifications:

• Microcontroller: u-blox® NORA-W106 (ESP32-S3)
• USB connector: USB-C
• Pins:
•        Built-in LED Pin: 13
•        Digital I/O Pins: 14
•        Analog input pins: 8
•        PWM pins: 5
•        External interrupts: All digital pins
• Communication: UART/I2C/SPI
• Power:
•        I/O Voltage: 3.3 V
•        Input voltage (nominal): 5-18 V
•        Source Current per I/O Pin: 40 mA
•        Sink Current per I/O Pin: 28 mA
• Clock speed: up to 240 MHz
• Memory:
•        ROM: 384 kB
•        SRAM: 512 kB
•        External Flash: 128 Mbit (16 MB)

Applications:

• IoT projects
• Micro python projects
• Creative interaction

Documentations:

• Schematics
• Datasheet

Package Includes:

• 1 x Arduino Nano ESP32 (with headers)
