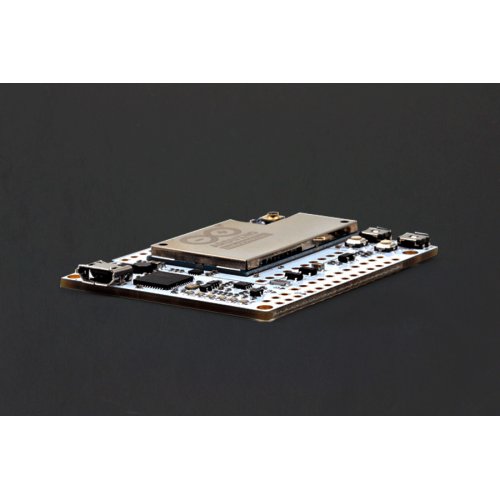

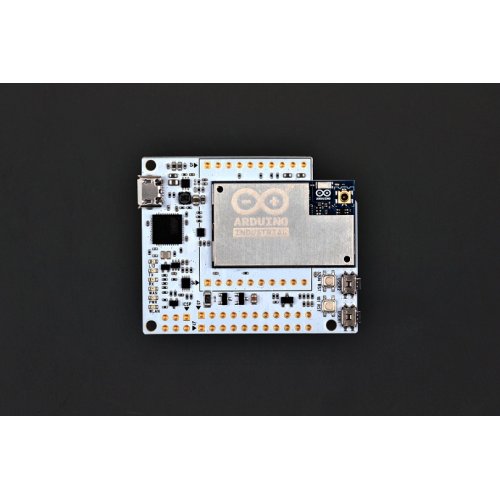

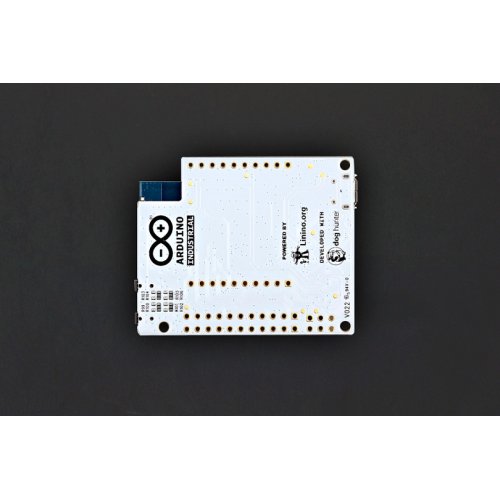

The Arduino Industrial 101 is a break-out board for the Arduino 101 LGA module. Just like the YUN, it integrates an ATmega32U4 and an Atheros AR9331 with WiFi and Linino OS.

Arduino Industrial 101 is an Evaluation board for Arduino 101 LGA module. The ATmega32u4 microcontroller is integrated in the baseboard. The module supports a Linux distribution based on OpenWRT named LininoOS. The board has built-in WiFi (IEEE 802.11b/g/n operations up to 150Mbps 1x1 2.4 GHz),  3 GPIOs (of which 2 can be used as PWM Outputs), 4 Analog Inputs, 1 USB, 1 Ethernet signal on pin headers and a built-in DC/DC converter. Check out the assembling guide and simply connect your board to a computer with a micro USB cable to get started.

NB: In some countries, it is prohibited to sell WiFi enabled devices without government approval. While waiting for proper certification, some local distributors are disabling WiFi functionality. Check with your dealer before purchasing a Industrial 101 if you believe you may live in such a country.

Note: Arduino INDUSTRIAL 101 is completely different from Arduino 101

Specifications:

ARDUINO MICROPROCESSOR

• Processor        Atheros AR9331
• Architecture        MIPS
• Operating Voltage    3.3 V
• Flash Memory        16 MB
• RAM            64 MB DDR2
• Clock Speed        400 MHz
• WiFi            802.11 b/g/n 2.4 GHz
• Ethernet        802.3 10/100 Mbit/s (Exported on headers)
• USB            2.0 Host (Exported on headers)

ARDUINO MICROCONTROLLER

• Microcontroller        ATmega32u4
• Architecture        AVR
• Operating Voltage    5 V
• Flash memory        32 KB
• SRAM            2.5 KB
• Clock Speed        16 MHz
• Analog I/O Pins        12 (4 exported on header)
• EEPROM            1 KB
• DC Current per I/O Pins    40 mA

GENERAL

• Input Voltage        5 V
• Digital I/O Pins    20 (7 exported on header)
• PWM Output        7 ( 2 exported on header)
• Power Consumption    130 mA
• PCB Size        42 x 51 mm/ 1.65 x 2 inches
• GPIO            3 Exported on headers
• DogOLED Support        1 Exported on headers
• Weight            12g

Documents

• Start with Arduino INDUSTRIAL 101
• Arduino product page
• EAGLE files
• Schematic
