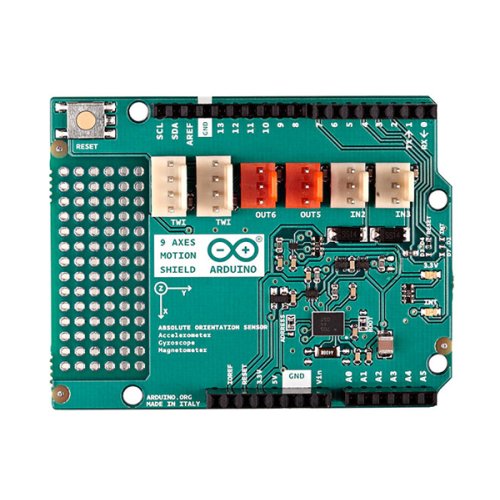

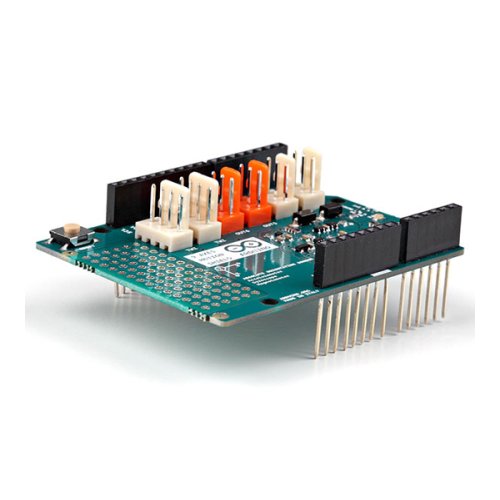

The Arduino 9 Axes Motion Shield is based on the BNO055 absolute orientation sensor from Bosch Sensortec GmbH which integrates a triaxial 14-bit accelerometer, a triaxial 16-bit gyroscope with a range of ±2000 degrees per second and a triaxial geomagnetic sensor with a 32-bit microcontroller running the BSX3.0 FusionLib software.
The sensor features three-dimensional acceleration, yaw rate and magnetic field strength data each in 3 perpendicular axes.
It also provides the sensor fusion signals such as
- Quaternion
- Euler angles
- Rotation vector
- Linear acceleration
- Gravity vector
In addition, it incorporates an intelligent interrupt engine, which allows for triggering interrupts based on
- slow or no motion recognition
- any motion (slope) detection
- high-g-detection.
The shield is TinkerKit compatible, which means you can quickly create projects by plugging TinkerKit modules to the board.
- Operating Voltage : 5V
- Power Consumption : 50mW
Documents:
Package Includes:
- 1 x Arduino 9 Axes Motion Shield
Arduino 9 Axes Motion Shield
- Brand: Arduino
- Product Code:Ard-9-Axes-Motion-Shield
- Reward Points:25
- Availability:In Stock
- रo 2,459.00
-
रo 2,200.00
- Price in reward points:2459
-
- 10 or more रo 2,065.00
- 100 or more रo 1,945.00
- 500 or more रo 1,820.00
