PIC18(L)FxxK42 MCUs integrate a rich set of core independent peripherals, intelligent analog peripherals and large Flash/RAM/EEPROM memories. These 28-, 40- and 48-pin devices also offer a host of low power features, performance improvements and design flexibility options that easily and rapidly enable the complex set of functions required by many of today's embedded control applications.
Specifications:
| EU RoHS | Compliant |
| Family Name | PIC18 |
| Instruction Set Architecture | RISC |
| Device Core | PIC |
| Core Architecture | PIC |
| Maximum CPU Frequency (MHz) | 64 |
| Maximum Clock Rate (MHz) | 64 |
| Data Bus Width (bit) | 8 |
| Program Memory Type | Flash |
| Program Memory Size | 64KB |
| RAM Size | 4KB |
| Programmability | Yes |
| Process Technology | CMOS |
| Interface Type | I2C/SPI/UART |
| Number of I/Os | 36 |
| PWM | 2 |
| No. of Timers | 7 |
| Number of ADCs | Single |
| ADC Channels | 35 |
| ADC Resolution (bit) | 12 |
| Number of DACs | Single |
| DAC Channels | 1 |
| DAC Resolution (bit) | 5 |
| UART | 2 |
| SPI | 1 |
| I2C | 2 |
| Watchdog | 0 |
| Analog Comparators | 2 |
| Minimum Operating Supply Voltage (V) | 1.8 |
| Typical Operating Supply Voltage (V) | 5|2.5|3.3 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Maximum Power Dissipation (mW) | 800 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 125 |
| Supplier Temperature Grade | Extended |
| Pin Count | 40 |
| Supplier Package | PDIP |
| Mounting | Through Hole |
| PCB changed | 40 |
Documents:
Package Includes:
- 1 x PIC18LF46K42-E/P Microcontroller - Original
| Controller Specifications | |
| Family Name | PIC18 |
| Instruction Set Architecture | RISC |
| Clock Speed | 64MHz |
| Device Core | PIC |
| Device Architecture | PIC |
| Bus Width | 8bit |
| Program Memory Type | Flash |
| Interface Type | I2C/SPI/UART |
| ADC | |
| Number of ADC | Single |
| Number of ADC Channel | 35 |
| ADC Resolution | 12bit |
| DAC | |
| Number of DACs | Singles |
| DAC Channels | 1 |
| DAC Resolution | 5bit |
| Electrical Specifications | |
| Minimum Operating Voltage | 1.8V |
| Maximum Operating Voltage | 5.5V |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 125°C |
| Maximum Power Dissipation | 800mW |
| Packaging | |
| Package | PDIP |
| Mounting | Through Hole |
| Pin Count | 40 |

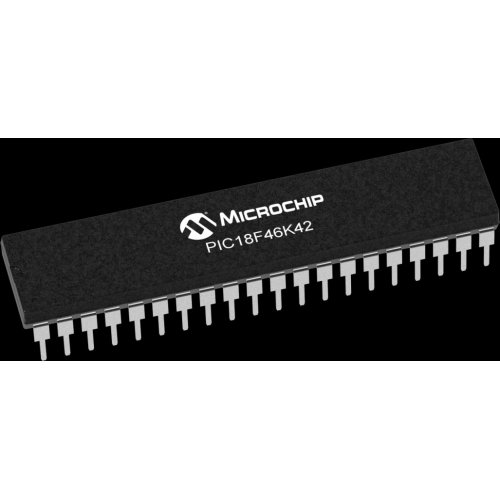

PIC18LF46K42-E/P Microcontroller - Original
- Brand: Microchip Technology
- Product Code:ARO-PIC18LF46K42-E-P
- Reward Points:4
- Availability:Out Of Stock
-
रo 380.00
- Price in reward points:380
-
- 35 or more रo 377.00
- 70 or more रo 374.00
- 170 or more रo 371.00
- 340 or more रo 368.00
