Up to 10 MIPS Performance at 3V, C compiler optimized RISC architecture, 8x8 Single Cycle Hardware Multiply, Internal oscillator support-31 kHz to 8MHz with 4xPLL. Fail-Safe Clock Monitor- allows safe shutdown if clock fails.
Specifications:
| EU RoHS | Compliant |
| Family Name | PIC18 |
| Instruction Set Architecture | RISC |
| Device Core | PIC |
| Core Architecture | PIC |
| Maximum CPU Frequency (MHz) | 40 |
| Maximum Clock Rate (MHz) | 40 |
| Data Bus Width (bit) | 8 |
| Program Memory Type | Flash |
| Program Memory Size | 48KB |
| RAM Size | 3968B |
| Programmability | Yes |
| Interface Type | SPI/I2C/USART |
| Number of I/Os | 36 |
| PWM | 2 |
| No. of Timers | 4 |
| Number of ADCs | Single |
| ADC Channels | 13 |
| ADC Resolution (bit) | 10 |
| USART | 1 |
| SPI | 1 |
| I2C | 1 |
| Watchdog | 1 |
| Analog Comparators | 2 |
| Minimum Operating Supply Voltage (V) | 4.2 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Maximum Power Dissipation (mW) | 1000 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Supplier Temperature Grade | Industrial |
| Pin Count | 40 |
| Supplier Package | PDIP |
| Mounting | Through Hole |
| PCB changed | 40 |
Documents:
Package Includes:
- 1 x PIC18F4525-I/P Microcontroller - Original
| Controller Specifications | |
| Family Name | PIC18 |
| Instruction Set Architecture | RISC |
| Clock Speed | 40MHz |
| Device Core | PIC |
| Device Architecture | PIC |
| Bus Width | 8bit |
| Program Memory Type | Flash |
| Interface Type | SPI/I2C/USART |
| ADC | |
| Number of ADC | Single |
| Number of ADC Channel | 13 |
| ADC Resolution | 10bit |
| Electrical Specifications | |
| Minimum Operating Voltage | 4.2V |
| Maximum Operating Voltage | 5.5V |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
| Maximum Power Dissipation | 1000mW |
| Packaging | |
| Package | PDIP |
| Mounting | Through Hole |
| Pin Count | 40 |

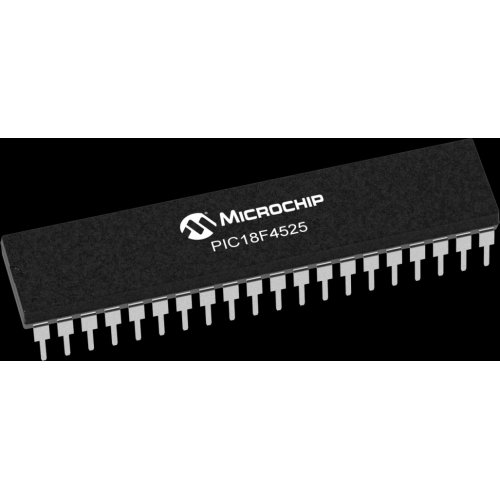

PIC18F4525-I/P Microcontroller - Original
- Brand: Microchip Technology
- Product Code:ARO-PIC18F4525-I-P
- Reward Points:7
- Availability:Out Of Stock
-
रo 736.00
- Price in reward points:736
-
- 20 or more रo 730.00
- 35 or more रo 724.00
- 85 or more रo 718.00
- 175 or more रo 713.00
