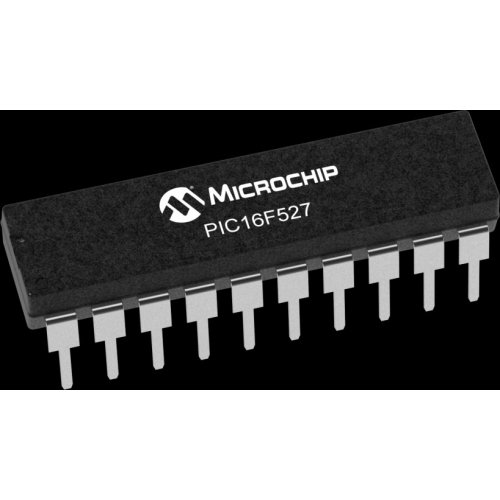

• PIC16F527-I/P Microcontroller - Original
The PIC16F527 combines the flexiblity of integrated Analog with the intelligence of a PIC Microcontroller to create a low cost MCU suitable for a wide range of applications. With an on-board ADC, dual Op Amps, and two Comparators, the PIC16F527 offers an excellent solution for signal conditioning and sensing applications.

Specifications:

EU RoHS Compliant
Family Name PIC16
Instruction Set Architecture RISC
Device Core PIC
Core Architecture PIC
Maximum CPU Frequency (MHz) 20
Maximum Clock Rate (MHz) 20
Data Bus Width (bit) 8
Program Memory Type Flash
Program Memory Size 1.5KB
RAM Size 68B
Programmability Yes
Number of I/Os 17
No. of Timers 1
Number of ADCs Single
ADC Channels 8
ADC Resolution (bit) 8
Watchdog 1
Analog Comparators 2
Minimum Operating Supply Voltage (V) 2
Typical Operating Supply Voltage (V) 5|3.3|2.5
Maximum Operating Supply Voltage (V) 5.5
Maximum Power Dissipation (mW) 700
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
Supplier Temperature Grade Industrial
Pin Count 20
Supplier Package PDIP
Mounting Through Hole
PCB changed 20



Documents:

Package Includes:

  • 1 x PIC16F527-I/P Microcontroller - Original
Controller Specifications
Family Name PIC16
Instruction Set Architecture RISC
Clock Speed 20MHz
Device Core PIC
Device Architecture PIC
Bus Width 8bit
Program Memory Type Flash
ADC
Number of ADC Single
Number of ADC Channel 8
ADC Resolution 8bit
Electrical Specifications
Minimum Operating Voltage 2V
Maximum Operating Voltage 5.5V
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Maximum Power Dissipation 700mW
Packaging
Package PDIP
Mounting Through Hole
Pin Count 20

Write a review

Please login or register to review

PIC16F527-I/P Microcontroller - Original

  • Brand: Microchip Technology
  • Product Code:ARO-PIC16F527-I-P
  • Reward Points:1
  • Availability:Out Of Stock
  • रo 125.00

  • Price in reward points:125

  • 100 or more रo 124.00
  • 200 or more रo 123.00
  • 515 or more रo 122.00
  • 1031 or more रo 121.00
