PIC16(L)F177X microcontrollers feature a high level of integration of Intelligent Analog and digital peripherals for a wide range of applications, such as lighting, power supplies, battery charging, motor control and other general purpose applications. These devices deliver multiple Op Amps, 5-/10-bit DACs, High-Speed Comparators, 10-bit ADC, 10-/16-bit PWMs, Programmable Ramp Generator (PRG) and other peripherals that can be connected internally to create closed loop systems without using pins or PCB area. The 10 and 16-bit PWMs, the Digital Signal Modulator (DSM) and tri-state output Op Amp can be used together to create a LED dimming engine. The Peripheral Pin Select (PPS) functionality provides flexibility, eases PCB layout and peripheral utilization by allowing digital peripheral pin mapping to any I/O.
Specifications:
EU RoHS | Compliant |
Family Name | PIC16 |
Instruction Set Architecture | RISC |
Device Core | PIC |
Core Architecture | PIC |
Maximum CPU Frequency (MHz) | 32 |
Maximum Clock Rate (MHz) | 32 |
Data Bus Width (bit) | 8 |
Program Memory Type | Flash |
Program Memory Size | 28KB |
RAM Size | 2KB |
Programmability | Yes |
Interface Type | I2C/SPI/USART |
Number of I/Os | 36 |
PWM | 4 |
No. of Timers | 8 |
Number of ADCs | Single |
ADC Resolution (bit) | 10 |
Number of DACs | Dual |
DAC Channels | 4/4 |
DAC Resolution (bit) | 10/10/10/10 |
USART | 1 |
SPI | 1 |
I2C | 1 |
Watchdog | 1 |
Analog Comparators | 8 |
Minimum Operating Supply Voltage (V) | 2.5 |
Typical Operating Supply Voltage (V) | 3.3|5 |
Maximum Operating Supply Voltage (V) | 5.5 |
Maximum Power Dissipation (mW) | 800 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Pin Count | 40 |
Supplier Package | PDIP |
Mounting | Through Hole |
PCB changed | 40 |
Documents:
Package Includes:
- 1 x PIC16F1779-I/P Microcontroller - Original
Controller Specifications | |
Family Name | PIC16 |
Instruction Set Architecture | RISC |
Clock Speed | 32MHz |
Device Core | PIC |
Device Architecture | PIC |
Bus Width | 8bit |
Program Memory Type | Flash |
Interface Type | I2C/SPI/USART |
ADC | |
Number of ADC | Single |
ADC Resolution | 10bit |
DAC | |
Number of DACs | Dual |
DAC Channels | 4/4 |
DAC Resolution | 10/10/10/10 |
Electrical Specifications | |
Minimum Operating Voltage | 2.5V |
Maximum Operating Voltage | 5.5V |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | 85°C |
Maximum Power Dissipation | 800mW |
Packaging | |
Package | PDIP |
Mounting | Through Hole |
Pin Count | 40 |

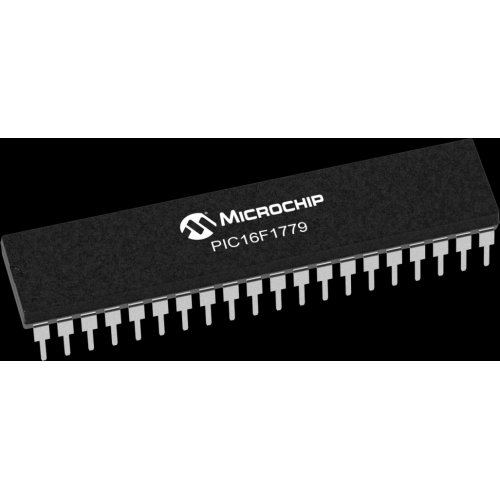

PIC16F1779-I/P Microcontroller - Original
- Brand: Microchip Technology
- Product Code:ARO-PIC16F1779-I-P
- Reward Points:1
- Availability:Out Of Stock
-
रo 147.00
- Price in reward points:147
-
- 90 or more रo 146.00
- 175 or more रo 145.00
- 440 or more रo 144.00
- 875 or more रo 143.00
