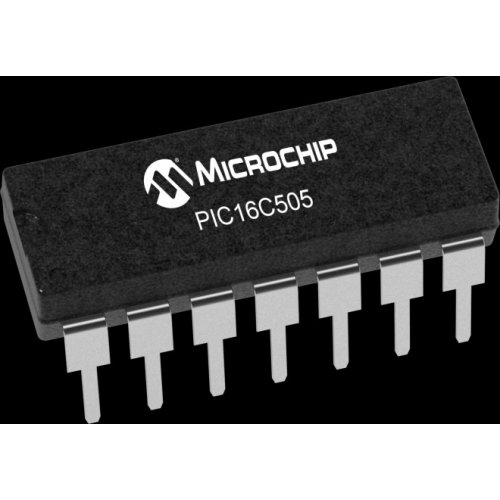

• PIC16C505-04I/P Microcontroller - Original

This powerful (200 nanosecond instruction execution) yet easy-to-program (only 33 single word instructions) CMOS ROM-based 8-bit microcontroller packs Microchip’s powerful PIC architecture into a 14-pin package. Easily adapted for applications ranging from personal care appliances and security systems to low power remote transmitters/receivers.

Specifications:

EU RoHS Compliant
Family Name PIC16
Instruction Set Architecture RISC
Device Core PIC
Core Architecture PIC
Maximum CPU Frequency (MHz) 4
Maximum Clock Rate (MHz) 4
Data Bus Width (bit) 8
Program Memory Type EEPROM
Program Memory Size 1.5KB
RAM Size 72B
Programmability Yes
Number of I/Os 12
No. of Timers 1
PWM 1
Watchdog 1
Minimum Operating Supply Voltage (V) 3
Typical Operating Supply Voltage (V) 5|3.3
Maximum Operating Supply Voltage (V) 5.5
Maximum Power Dissipation (mW) 700
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
Supplier Temperature Grade Industrial
Pin Count 14
Supplier Package PDIP
Mounting Through Hole
PCB changed 14



Documents:

Package Includes:

  • 1 x PIC16C505-04I/P Microcontroller - Original
Controller Specifications
Family Name PIC16
Instruction Set Architecture RISC
Clock Speed 4MHz
Device Core PIC
Device Architecture PIC
Bus Width 8bit
Program Memory Type EEPROM
Electrical Specifications
Minimum Operating Voltage 3V
Maximum Operating Voltage 5.5V
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Maximum Power Dissipation 700mW
Packaging
Package PDIP
Mounting Through Hole
Pin Count 14

Write a review

Please login or register to review

PIC16C505-04I/P Microcontroller - Original

  • Brand: Microchip Technology
  • Product Code:ARO-PIC16C505-04I-P
  • Reward Points:2
  • Availability:In Stock
  • रo 216.00

  • Price in reward points:216

  • 60 or more रo 214.00
  • 120 or more रo 212.00
  • 300 or more रo 211.00
  • 600 or more रo 209.00
