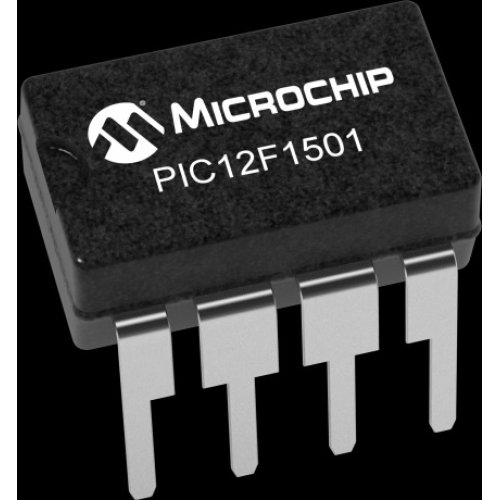

• PIC12LF1501-I/P Microcontroller - Original

Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels. Flash Program Memory with self read/write capability. 128 B of Non-volatile Data Storage.

Specifications:

EU RoHS Compliant
Family Name PIC12
Instruction Set Architecture RISC
Device Core PIC
Core Architecture PIC
Maximum CPU Frequency (MHz) 20
Maximum Clock Rate (MHz) 20
Data Bus Width (bit) 8
Program Memory Type Flash
Program Memory Size 1.75KB
RAM Size 64B
Programmability Yes
Number of I/Os 5
No. of Timers 3
PWM 4
Number of ADCs Single
ADC Channels 4
ADC Resolution (bit) 10
Number of DACs Single
Watchdog 1
Analog Comparators 2
Minimum Operating Supply Voltage (V) 1.8
Typical Operating Supply Voltage (V) 3.3
Maximum Operating Supply Voltage (V) 3.6
Maximum Power Dissipation (mW) 800
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
Supplier Temperature Grade Industrial
Pin Count 8
Supplier Package PDIP
Mounting Through Hole
PCB changed 8



Documents:

Package Includes:

  • 1 x PIC12LF1501-I/P Microcontroller - Original
Controller Specifications
Family Name PIC12
Instruction Set Architecture RISC
Clock Speed 20MHz
Device Core PIC
Device Architecture PIC
Bus Width 8bit
Program Memory Type Flash
ADC
Number of ADC Single
Number of ADC Channel 4
ADC Resolution 10bit
DAC
Number of DACs Single
Electrical Specifications
Minimum Operating Voltage 1.8V
Maximum Operating Voltage 3.6V
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Maximum Power Dissipation 800mW
Packaging
Package PDIP
Mounting Through Hole
Pin Count 8

Write a review

Please login or register to review

PIC12LF1501-I/P Microcontroller - Original

  • Brand: Microchip Technology
  • Product Code:ARO-PIC12LF1501-I-P
  • Reward Points:2
  • Availability:Out Of Stock
  • रo 242.00

  • Price in reward points:242

  • 50 or more रo 240.00
  • 105 or more रo 238.00
  • 265 or more रo 236.00
  • 535 or more रo 234.00
