This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS FLASH-based 8-bit microcontroller packs Microchip's powerful PIC architecture into an 40- or 44-pin package and is upwards compatible with the PIC16C5X, PIC12CXXX and PIC16C7X devices. The PIC16F871 features 64 bytes of EEPROM data memory, self programming, an ICD, 8 channels of 10-bit Analog-to-Digital (A/D) converter, 2 additional timers, a capture/compare/PWM functions and a Universal Asynchronous Receiver Transmitter (USART). All of these features make it ideal for more advanced level A/D applications in automotive, industrial, appliances and consumer applications.
Specifications:
| EU RoHS | Compliant |
| Family Name | PIC16 |
| Instruction Set Architecture | RISC |
| Device Core | PIC |
| Core Architecture | PIC |
| Maximum CPU Frequency (MHz) | 20 |
| Maximum Clock Rate (MHz) | 20 |
| Data Bus Width (bit) | 8 |
| Program Memory Type | Flash |
| Program Memory Size | 3.5KB |
| RAM Size | 128B |
| Programmability | Yes |
| Interface Type | I2C/SPI/USART |
| Number of I/Os | 33 |
| PWM | 1 |
| No. of Timers | 3 |
| Number of ADCs | Single |
| ADC Channels | 8 |
| ADC Resolution (bit) | 10 |
| USART | 1 |
| SPI | 1 |
| I2C | 1 |
| Watchdog | 1 |
| Analog Comparators | 2 |
| Minimum Operating Supply Voltage (V) | 4 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Maximum Power Dissipation (mW) | 1000 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Supplier Temperature Grade | Industrial |
| Pin Count | 40 |
| Supplier Package | PDIP |
| Mounting | Through Hole |
| PCB changed | 40 |
Documents:
Package Includes:
- 1 x PIC16F871-I/P Microcontroller - Original
| Controller Specifications | |
| Family Name | PIC16 |
| Instruction Set Architecture | RISC |
| Clock Speed | 20MHz |
| Device Core | PIC |
| Device Architecture | PIC |
| Bus Width | 8bit |
| Program Memory Type | Flash |
| Interface Type | I2C/SPI/USART |
| ADC | |
| Number of ADC | Single |
| Number of ADC Channel | 8 |
| ADC Resolution | 10bit |
| DAC | |
| Number of DACs | Single |
| DAC Channels | 1 |
| DAC Resolution | 8bit |
| Electrical Specifications | |
| Minimum Operating Voltage | 4V |
| Maximum Operating Voltage | 5.5V |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
| Maximum Power Dissipation | 1000mW |
| Packaging | |
| Package | PDIP |
| Mounting | Through Hole |
| Pin Count | 40 |

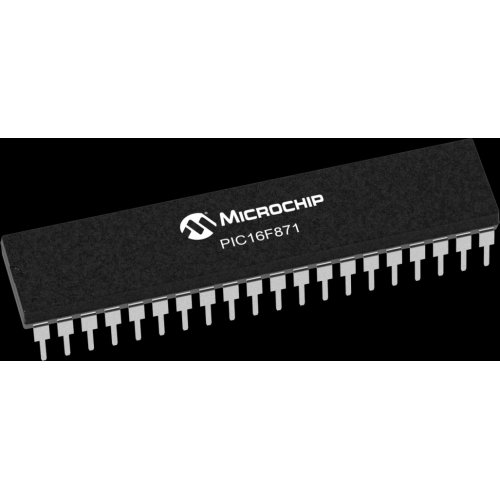

PIC16F871-I/P Microcontroller - Original
- Brand: Microchip Technology
- Product Code:ARO-PIC16F871-I-P
- Reward Points:6
- Availability:Out Of Stock
-
रo 591.00
- Price in reward points:591
-
- 20 or more रo 587.00
- 45 or more रo 582.00
- 110 or more रo 577.00
- 220 or more रo 572.00
