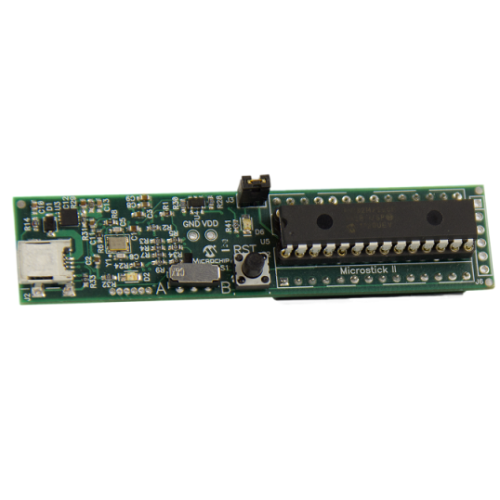

Microstick II delivers a complete development hardware platform for Microchip’s 16-bit and 32-bit microcontrollers and digital signal controllers. It’s the perfect solution to those looking for a low-cost, easy-to-use development platform.  (Note: Go to Microstick for dsPIC33F and PIC24H Development Board for information on the Microstick tool.)

The USB-powered kit includes an on-board debugger/programmer, a DUT socket for easy device swapping, a user LED and reset button. It is designed for insertion into a standard prototyping board for easy connection to additional circuitry. The kit is extremely portable as well and is still about the size of a stick of gum!

Supported Parts:

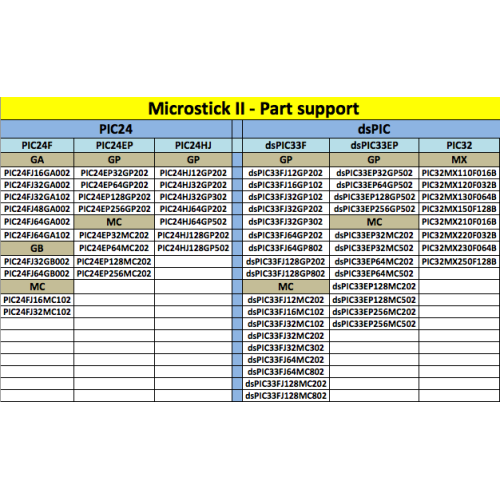

Microstick II supports 3.3V PIC24FJ, PIC24E, PIC24H, dsPIC33, and PIC32 28-pin SPDIP packaged devices shown in the table to the right (see images).

Features

• Low Cost
• Integrated USB programmer / debugger – No external debugger required
• USB Powered – Ease of use, No external power required
• MPLAB support.
• DUT Socket – Flexible, Easy device replacement
• 0.025” Pin headers – Enables plug-in to Breadboard with room for jumper wires
• Easy access to all device signals for probing
• Small size - Smaller than a stick of gum at 20 x76mm – Easily Portable
• On board User LED and Reset Switch
• Free demo code

Packaging Contents

• Microstick II Board
• USB Cable
• 2 - 1x14 header pins for proto board use
• 1 - PIC24FJ64GB002
• 1 - PIC24HJ128GP502
• 1 - DsPIC33FJ128MC802
• 1 - PIC32MX250F128B
• Info Sheet with installation instructions and board schematic

Documents

Microstick_demo_v2013_06_26

MicroStickII PIC32 Code Example

Microstick II Information Sheet
