Multifunction Tester for measurement of T-RMS Insulation Resistance, Continuity, Low Resistance, RCD types A, AC, B, B+, F , Loop Impedance, Line Impedance, Voltage, Frequency, Earth Resistance, Phase Rotation, RCD/FI for Electric Vehicles Charging Stations (6 mA DC), RCD/FI for Electric Vehicles Charging Stations (6 mA DC). With TFT Colour LCD, Data Logging for 1000 readings and Rechargeable Battery, USB Interface. CAT III 600V, CAT IV 300V, Double Insulation, IP42

The Metravi Pro MFT-9101 Multifunction Tester is used for the verification of electrical safety of installations according to DIN VDE 0100 and EN 61557.

It is a versatile electrical testing device designed to ensure the safety, functionality, and compliance of electrical installations. It is commonly used by electricians and professionals to perform various tests required by standards.

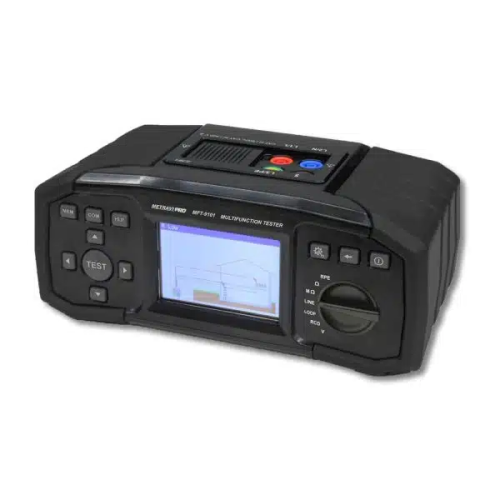

The Metravi Pro MFT-9101 Multifunction Tester is manufactured in Germany and combines several electrical testing capabilities into one device, eliminating the need for separate tools. It is an all-in-one instrument featuring a 3.5 inch TFT colour display and rotary switch, covering the measurements you need. Fast. Safe.

Benefits:

• Efficiency: Combines multiple tests in one device, saving time and effort.
• Compliance: Ensures adherence to safety standards and regulatory requirements.
• Safety: Identifies potential electrical hazards before they lead to accidents.
• Portability: Easy to carry and use in various environments.
• By streamlining electrical testing processes, the The Metravi Pro MFT-9101 Multifunction Tester becomes an indispensable tool for professionals involved in electrical installation, maintenance, and safety inspections.

Specifications:

• Insulation Resistance: 50/100/250/500/1000V DC
• Continuity Resistance: Low R (200mA); Continuity (low current)
• RCD Testing:
• Nominal residual currents (mA) 6/10/30/100/300/ 500/650/1000
• Test current shape A, AC, B, B+, F
• RCD Type G, S
• Contact voltage
• Trip-out time
• Trip-out current
• Fault Loop Impedance and Prospective Fault Current:
• Zloop L-PE, Ipfc
• Zloop L-PE RCD, Ipfc, non trip subfunction
• Loop-Rs
• Line Impedance and Prospective Short-circuit Current:
• Line Impedance
• Prospective Short Circuit Current
• Voltage drop detection
• Voltage: 0-500V
• Frequency: 10-499Hz
• Earth Resistance: Re (3-wire and 4-wire), Ro
• Continuity:
• Test current 7 mA (2-wire): 0.0 Ω – 1999 Ω
• Test current 200 mA (2-wire): 0.00 Ω – 1999 Ω
• Data Logging: 1000 Sets
• Interface: USB for Data Export & Reporting
• Power Supply: Rechargeable Battery
• Automatic Polarity Change
• Calibration Date Reminder
• Safety: CAT III 600V, CAT IV 300V, Pollution Grade 2
• Protection: IP42
• Display: 480X320 TFT Colour LCD

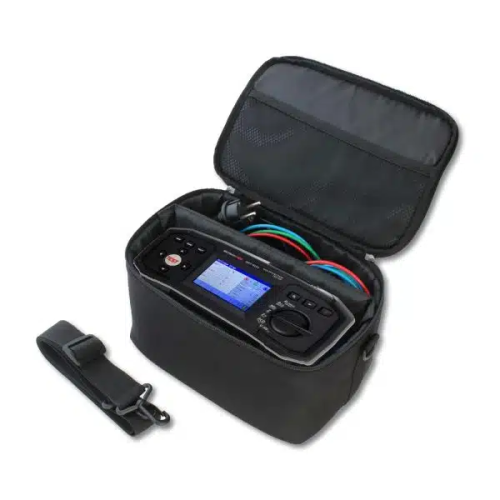

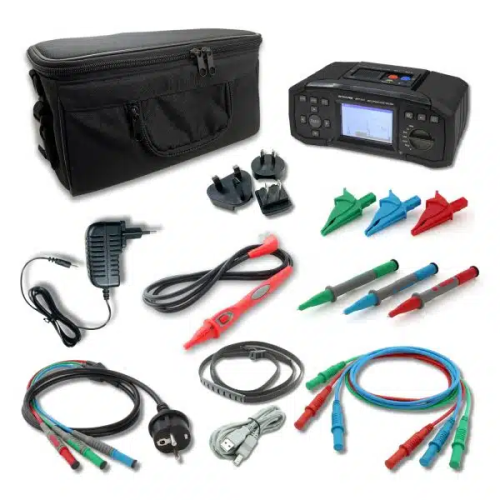

• Standard Accessories: 3 pcs Test Leads Stackable (1m), Schuko-plug Test Cable, 3 pcs Test Probes, 3 pcs Alligator Clips, User Manual, Shoulder Strap, Carrying Case, USB Cable, Power Adapter (for charging), 6 pcs Rechargeable Batteries
• Optional Accessories: External Probe with Button, 40m Extension Test Lead, US-plug Test Cable, UK-plug Test Cable, Earth Kit (3 x Cables 20m/20m/5m + 2 x Earth Stakes), EVSE Adapter

Applications:

• New Installations: Verify that new electrical installations comply with safety regulations.
• Periodic Testing: Ensure existing installations remain safe and operational over time.
• Troubleshooting: Diagnose issues in circuits, such as high impedance, poor insulation, or faulty RCDs.
• Industrial and Commercial Use: Test complex systems like three-phase circuits or high-voltage networks.

Documentations:

• Wiki

Package Includes:

• 1 x Metravi Pro MFT-9101 Multifunction Tester
