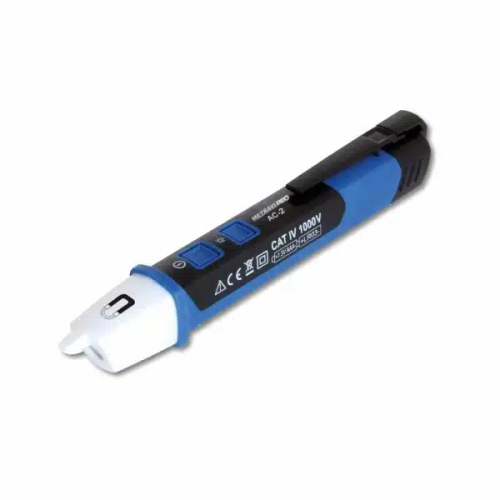

The Metravi Pro AC-2 Non-contact Voltage Detector is developed and manufactured in Germany, is used for voltage testing of insulated wires and cables. Additionally, magnetic functions in valves or relays can be tested. No direct contact to the device under test (DUT) is required.

A 6-in-1 instrument for:

Non-contact Voltage Detection
Phase detection on Sockets
Non Contact Magnetic Field Detection
Determination of Static or Electro Magnetic Fields
Check for Cable Breaks
LED flash light to access Dark Areas

Features:

Designed to meet international safety standards EN 61010-1
⁠Measurement Category CAT IV 1000V
⁠Test 12V and 1000V (2 ranges: 12V-50V & 50V-1000V)
Voltage test through Red LED, vibration motor and buzzer
Power-on indication
Self test during power on
Low battery indication
Auto power-off
Built-in LED Flashlight
IP65 (IEC 60529) protection

Specifications:

Display: Bright Red/Yellow LED
Certifications: EN 61010-1, CAT IV 1000V
Measuring Range:12V-50V and 50V-1000V
Voltage test through Red LED, vibration motor and buzzer
Frequency Range: 40 – 400 Hz
Self test during power on
Low battery indication
Non-contact magnetic field testing
Detection of Magnetic Field: >2.5 mT; indication through Yellow LED, indicator shows whether it is static magnet field or electro-magnetic field
Auto power-off
Built-in LED Flashlight
Protection: IP65 (IEC 60529)
Power: Battery operated, 2 x 1.5 V LR03 (AAA)
