20MHz, Dual Trace Dual Channel Oscilloscope with component tester.
Specifications:
- Dual Trace Dual Channel Oscilloscope with Component Test Facility
- Bandwidth: 20MHz
- Full bandwidth sweeping circuit is used in the sweeping system
- The flexible and convenient triggering mode has the functions for selecting signals from one channel or triggered by Ext signals
- ALT trigger to observe signals from two irrelative channels
- The instrument has the functions of TV-H / TV-V synchronization and trigger-lock to observe all kinds of signals stably
- From the terminal for trigger input, CH1 and CH2 signals can be output along with the triggering channel to connect the Ext frequency counter
- Y deflection operation: Y1, Y2, ALT, CHOP, ADD, mode X-Y
- Vertical Deflection: 5mV/Div to 20V/Div in factor 1-2-5 sequence in 12 steps
- Rising time: < 18nS
- Maximum Input Voltage: 400V (DC +ACp-p)
- Triggering Source: Y1, Y2, ALT, POWER, EXT
- Trigger Coupling: AC/DC (EXT), NORM/TV-H, TV-V
- Horizontal Sweep Mode: AUTO, TRIG, LOCK, SINGLE
- Sweep time factor: 0.1uS/div to 0.2s/div in 1-2-5 sequence in 20 steps
- Magnification: x10
- X-Y Mode input: X-Axis YI and Y-Axis Y2
- Z Axis minimum input level: TTL Level
- Component Test Facility
- Calibration Signal: Square wave of 0.5V at 1kHz
- CTR Display size: 8cm x 10cm
- Auxiliary Power Supply: 230V 50Hz AC
Documents:
Warranty: 1 year against manufacturing defects
- Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.
Package Includes:
- 1 x Metravi OS-5020C Dual Channel Oscilloscope

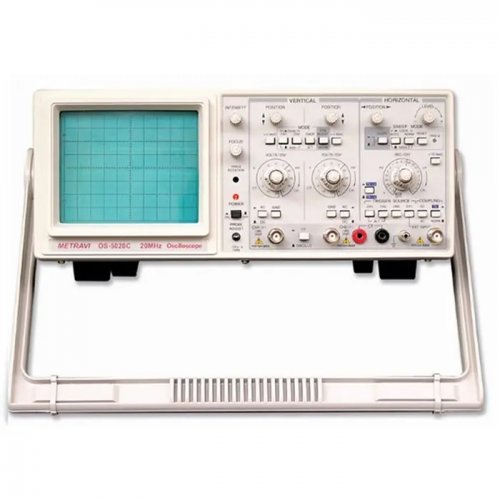

Metravi OS-5020C Dual Channel Oscilloscope
- Brand: METRAVI
- Product Code:MTR-OS-5020C-Oscilloscope
- Reward Points:327
- Availability:In Stock
- रo 32,798.00
-
रo 28,670.00
- Price in reward points:32798
