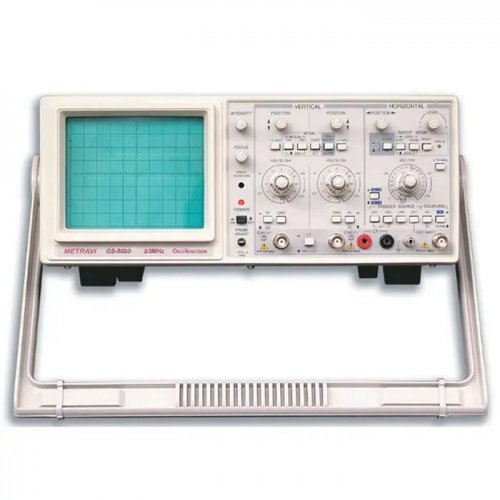

• Metravi OS-5020 Dual Channel Oscilloscope

20MHz, Dual Trace Dual Channel Oscilloscope.

Specifications:

  • Dual Trace Dual Channel Oscilloscope
  • Bandwidth: 20MHz
  • Full bandwidth sweeping circuit is used in the sweeping system
  • The flexible and convenient triggering mode has the functions for selecting signals from one channel or triggered by Ext signals
  • ALT trigger to observe signals from two irrelative channels
  • The instrument has the functions of TV-H / TV-V synchronization and trigger-lock to observe all kinds of signals stably
  • From the terminal for trigger input, CH1 and CH2 signals can be output along with the triggering channel to connect the Ext frequency counter
  • Y deflection operation: Y1, Y2, ALT, CHOP, ADD, mode X-Y
  • Vertical Deflection: 5mV/Div to 20V/Div in factor 1-2-5 sequence in 12 steps
  • Rising time: < 18nS
  • Maximum Input Voltage: 400V (DC +ACp-p)
  • Triggering Source: Y1, Y2, ALT, POWER, EXT
  • Trigger Coupling: AC/DC (EXT), NORM/TV-H, TV-V
  • Horizontal Sweep Mode: AUTO, TRIG, LOCK, SINGLE
  • Sweep time factor: 0.1uS/div to 0.2s/div in 1-2-5 sequence in 20 steps
  • Magnification: x10
  • X-Y Mode input: X-Axis YI and Y-Axis Y2
  • Z Axis minimum input level: TTL Level
  • Calibration Signal: Square wave of 0.5V at 1kHz
  • CTR Display size: 8cm x 10cm

Documents:

Warranty: 1 year against manufacturing defects
  • Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

  • 1 x Metravi OS-5020 Dual Channel Oscilloscope

Write a review

Please login or register to review

Metravi OS-5020 Dual Channel Oscilloscope

  • Brand: METRAVI
  • Product Code:MTR-OS-5020-Oscilloscope
  • Reward Points:304
  • Availability:In Stock
  • रo 30,475.00
  • रo 26,650.00

  • Price in reward points:30475
