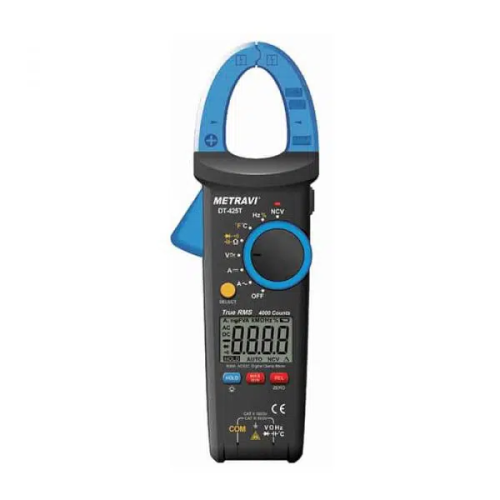

3-3/4 Digits 3999 Counts Backlit LCD, T-RMS AC/DC Clamp meter, Confirms to CAT-III 600V, Data Hold, MAX/MIN, Relative, In-Built Flash Light, Overload Protection, 30mm Clamp Jaw Dia, Auto Power Off, AC T-RMS / DC Current 600A, AC T-RMS / DC Voltage 600V, Resistance, Capacitance, Temperature, Frequency, Non-contact Voltage Detector, Diode and Continuity Test.

Specifications:

3-3/4 Digits 3999 Counts Backlit LCD Display
Built-in Flash light to access dark Areas
Non Contact Voltage Detector to show the presence of Voltage
Sleek Ergonomic Design
Confirms to IEC/EN 61010-1, IEC/EN 61010-2-032 & IEC/EN 61010-2-033
Confirms to UL, CAT-III 600V
Data Hold to Freeze Displayed Data
MAX-MIN record function
Relative measuring facility
30mm Jaw Dia
Overload indication
600V AC/DC Protection in all ranges
Auto Power Off
AC T-RMS Current: 0 – 40 / 600A
Accuracy: ±2.5%
DC Current: 0 – 40 / 600A
Accuracy: ±2%
AC T-RMS Voltage: 0 – 4 / 40 / 400 / 600V
Accuracy: ±1.2%
DC Voltage: 0 – 400m / 4 / 40 / 400 / 600V
Accuracy: ±0.8%
Resistance: 0 – 400 / 4k / 40k / 400k / 4M / 40M.Ohms
Accuracy: ±1%
Capacitance: 0 – 40n / 400n / 4u / 40u / 400u / 4m / 40mF
Accuracy: ±4%
Frequency: 10Hz ~ 1MHz
Accuracy: ±0.1%
Temperature: -40 to 1000°C
Accuracy: ±1%
Continuity & Diode Test

Additional Informations:

Model DT-425T
Brand Metravi
Warranty One year against manufacturing defects
Colour Blue-Black
Display Backlit LCD
AC or AC/DC AC/DC
T-RMS T-RMS
Flashlight Flashlight for working in dark areas
NCV Detection Non-contact Voltage Detection
Data Hold Data Hold
Max/Min/Avg/Dif Max/Min
Relative Measurement Relative Measurement
Overload Indication Overload Indication
Jaw Dia 30mm
Auto Power Off Auto Power-off
Diode & Continuity Diode & Continuity test
Polarity Automatic
Low Battery Indication Low Battery Indication
Sampling Time 3 times/sec
Sensor Type Hall Effect Sensor
Drop Tested Drop Tested up to 1m
Power Source Battery Operated
Battery Type Alkaline
Battery Size AAA
No of Batteries 3
AC Current Range 0–40A/600A
DC Current Range 0–40A/600A
AC Voltage Range 0-4V/40V/400V/600V
DC Voltage Range 0 – 400mV / 4V / 40V / 400V / 600V
Resistance Range 0 – 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ
Capacitance Range 0-40nF/400nF/4uF/40uF/400uF/4mF/40mF
Frequency Range 10Hz to 1MHz
Temperature Range -40°C to 1000°C
Temperature Accuracy ±1.0%
AC Current Accuracy ±2.5%
DC Current Accuracy ±2.0%
AC Voltage Accuracy ±1.2%
DC Voltage Accuracy ±0.8%
Resistance Accuracy ±1.0%
Capacitance Accuracy ±4.0%
Frequency Accuracy ±0.1%
AC Current Resolution 0.01A to 0.1A
DC Current Resolution 0.01A to 0.1A
AC Voltage Resolution 0.001V to 1V
DC Voltage Resolution 0.1mV to 1V
Resistance Resolution 0.1Ω to 0.01MΩ
Capacitance Resolution 0.01nF to 0.01mF
Temperature Resolution 1˚C
Frequency Resolution 0.01Hz to 1kHz
Certifications CAT-III 600V, IEC / EN 61010-1, IEC / EN 61010-2-032, IEC / EN 61010-2-033, UL
