3-3/4 Digits, LCD, Data Hold, 30mm Jaw Size, AC/DC Voltage, AC/DC Current up to 1000A, Resistance, Capacitance, Temperature, Frequency, Duty Cycle, Diode & Continuity Test.
Specifications:
- Data Hold Facility
- Double molded body with rubber coating
- Clamp Jaw Size: 30mm
- Display : 3-3/4 Digital 3999 Counts Backlit LCD
- DC Voltage : 0 – 400m/4/40/400/600V.
- Accuracy : ±0.8%
- AC Voltage : 0 – 400m/4/40/400/600V.
- Accuracy : ±1.0%
- DC Current : 0 – 40/400/1000A.
- Accuracy : ±2.5%
- AC Current : 0 – 40/400/1000A.
- Accuracy : ±3.0%
- Resistance : 0 – 400/4k/40k/400k/4M/40M.Ohms
- Accuracy : ±1.0%
- Temperature : -20°C to 1000°C / -4°F to 1832°F
- Accuracy : ±3.0%
- Frequency : 0 – 5/50/500/5K/50K/100KHz
- Accuracy : ±1.2%
- Capacitance : 0 – 40n/400n/4u/40u/100uF
- Accuracy : ±3.0%
- Duty Cycle : 0.5 – 99.9%
- Accuracy : ±1.2%
- Diode Test and Continuity Test
- Confirms to CE, IEC 61010, CAT-III 600V
Additional Informations:
- Model DT-4250
- Brand Metravi
- Warranty One year against manufacturing defects
- Colour Black-Red
- Display Backlit LCD
- AC or AC/DC AC/DC
- Data Hold Data Hold
- Jaw Dia 30mm
- Diode & Continuity Diode & Continuity test
- Low Battery Indication Low Battery Indication
- Overload Indication Overload Indication
- Sampling Time 2 times/sec
- Power Source Battery Operated
- Battery Type Alkaline
- Battery Size 9V
- No of Batteries 1
- Auto Power Off Auto Power-off
- AC Current Range
- AC Current Accuracy ±3.0%
- DC Current Range 0 – 40A / 400A / 1000A
- DC Current Accuracy ±2.8%
- DC Voltage Range 0 – 400mV / 4V / 40V / 400V / 600V
- DC Voltage Accuracy ±0.8%
- AC Voltage Range 0 – 400mV / 4V / 40V / 400V / 600V
- AC Voltage Accuracy ±0.8%
- Resistance Range 0 – 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ
- Resistance Accuracy ±1.0%
- Capacitance Range 0–40nF/400nF/4uF/40uF/100uF
- Capacitance Accuracy ±3.0%
- Frequency Range 0–5Hz/50Hz/500Hz/5kHz/50kHz/100kHz
- Frequency Accuracy ±1.2%
- Duty Cycle Range 0.5% to 99%
- Certifications CAT-II 1000V, CAT-III 600V, CE, IEC 61010, Pollution Grade 2
Documentation:
Package Includes:

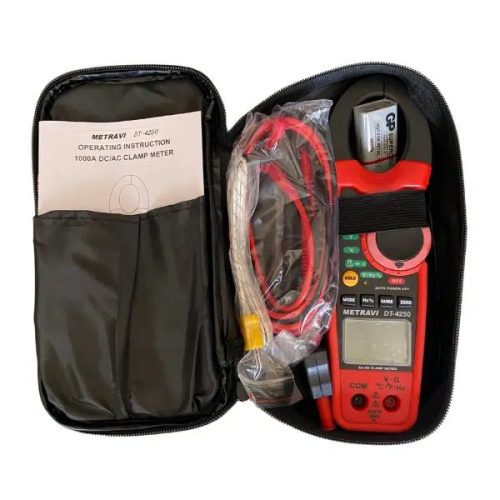

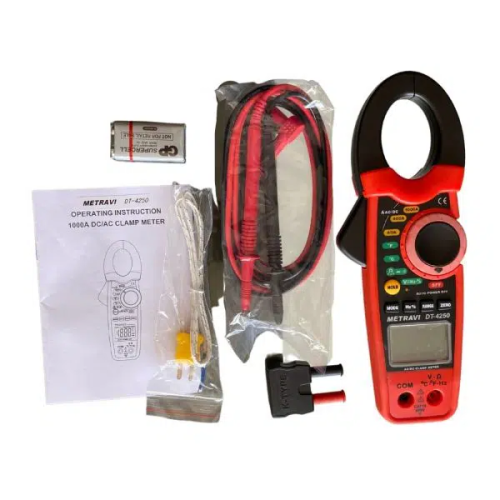

- 1 x Metravi DT-4250 Digital AC/DC Clamp Meter

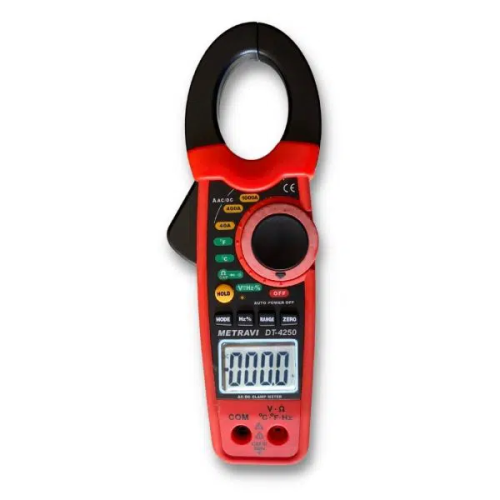

Metravi DT-4250 Digital AC/DC Clamp Meter
- Brand: METRAVI
- Product Code:NR-MTR-DT-4250-Digital
- Availability:Pre-Order
-
