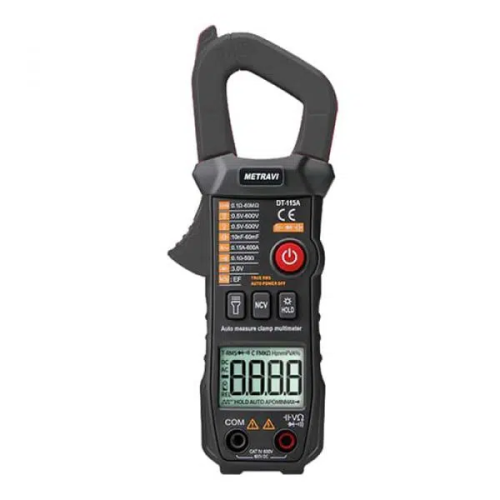

The Metravi DT-115A is a 3-5/6 Digit 6000 Counts, T-RMS, Auto Scanning, Pocket-sized Digital Clamp Meter.

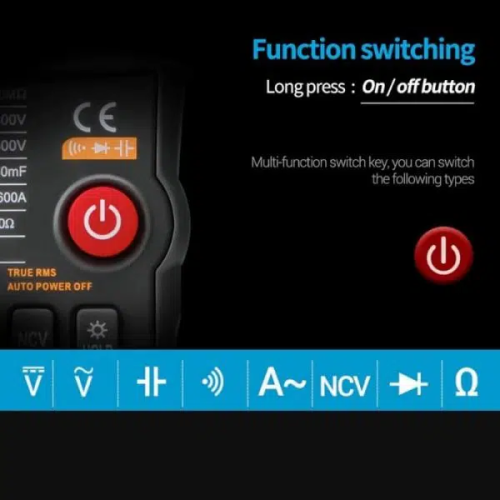

The unique feature of this meter is that it is fully automatic and does not even require a dial to select the required function. It is an intelligent meter that automatically recognises and measures, based on the input voltage / current / resistance / capacitance.
Along with its automatic recognition feature, it is a very stable and precise testing and measurement instrument, with high reliability, large and clear display and overload protection.

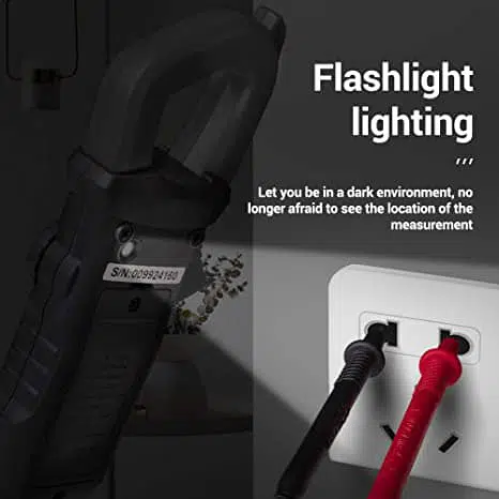

It can also detect Non-contact Voltage and comes with a built-in, bright, flashlight.

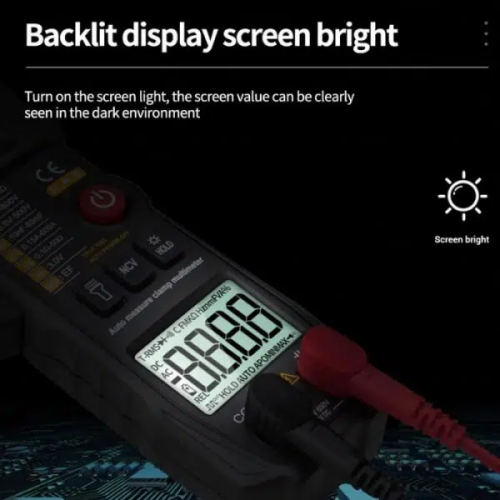

Even at the edge of 2.3V low battery, it ensures high brightness of both the backlight and flashlight. The instrument’s backlight turns off automatically after 15 seconds.

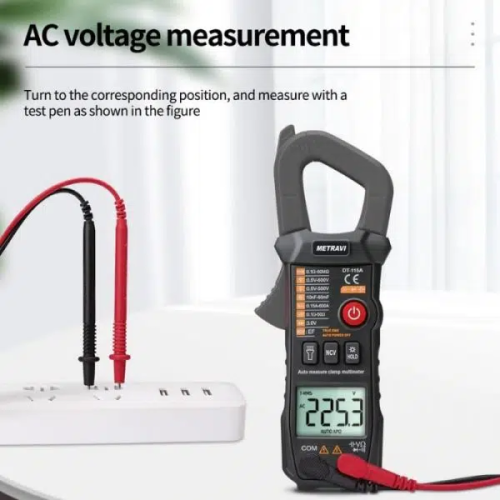

Measures AC/DC Voltage, AC Current 600A, Resistance, Capacitance, Diode and Continuity. No switching is required. Parameters such as capacitance, diode and on/off test can be measured by manual switching.
The meter is handy to carry and is very popular amongst users. It is a superior tool and an ideal tool for Laboratories, Factories, Radio Enthusiasts, Hobbyists, Students and Professionals.
Specifications:
- 6000 Counts Backlit LCD Display
- Built-in Flashlight to access dark Areas
- Non Contact Voltage Detection
- Simple to use
- Just provide the input and the instrument detects the signal and displays the parameter
- No Selection required, Just provide Input
- Automatic Selection of AC/DC Voltage, Resistance, Capacitance, Diode Test
- T-RMS Measurements
- DC Voltage: 0 – 6/60/600V
- Accuracy: ± 0.5%
- AC Voltage T-RMS: 0 – 500V
- Accuracy: ± 0.5%
- AC Current T-RMS: 0 – 60 / 600A
- Accuracy: ± 2%
- Resistance: 0 – 600 / 6k / 60k / 600k / 6M / 60M.Ohms
- Accuracy: ± 0.8%
- Capacitance: 0 – 10n / 100n / 1u / 10u / 100u / 1m / 10m / 60mF
- Accuracy: ± 3.5%
- Diode Test and Continuity Test Facility
Additional Informations:
- Model DT-115A
- Brand Metravi
- Warranty One year against manufacturing defects
- T-RMS T-RMS
- AC or AC/DC AC
- Colour Black
- Display Backlit LCD
- Flashlight Flashlight for working in dark areas
- NCV Detection Non-contact Voltage Detection
- Diode & Continuity Diode & Continuity test
- Sampling Time 3 times/sec
- Overload Indication Overload Indication
- Jaw Dia 31mm
- Low Battery Indication Low Battery Indication
- Data Hold Data Hold
- Power Source Battery Operated
- Battery Type Alkaline
- Battery Size AAA
- No of Batteries 2
- DC Voltage Range 0–6V/60V/600V
- DC Voltage Accuracy ±0.5%
- AC Voltage Range 0–6V/60V/500V
- AC Voltage Accuracy ±0.5%
- AC Current Range 0-60A/600A
- AC Current Accuracy ±2.0%
- Resistance Range 0-600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
- Resistance Accuracy ±0.8%
- Capacitance Range 0–10nF/100nF/1uF/10uF/100uF/1mF/10mF/60mF
- Capacitance Accuracy ±3.5%
- DC Voltage Resolution 0.001V to 0.1V
- AC Voltage Resolution 0.001V to 1V
- AC Current Resolution 0.01A to 0.1A
- Resistance Resolution 0.1Ω to 10kΩ
- Capacitance Resolution 10pF to 100uF
- Certifications CAT IV 600V
Documentation:
Package Includes:
- 1 x Metravi DT-115A Digital TRMS AC Clamp Meter
