50MHz DSO, 500MSa/Sec, with colored display, USB PC Interface cable and software.
Specifications:
- Double Analog Channels High-resolution colorful LCD display with resolution of 400 X 240 (or 800 X 480)
- To support plug and play USB storage instrument to communicate with computer.
- Automatic waveform and status setup. Waveform, setup, bitmap storage, waveform and setup reoccurrence.
- Elaborate view window extension function for delicate analysis of waveform details and profile
- Automatic measurement of 28 kinds of waveform parameters
- Automatic cursor tracing and measurement function
- Unique waveform recording and playback functions
- Embedded FFT
- Multiple mathematical calculation functions (including +, -, X, ÷ ) for waveform
- Edge, video, pulse width and ALT Trigger functions
- Multi-language menu display
- Bandwidth 50MHz
- Sampling Rage: 500MSA/Sec.
- Storage Depth: 25k
- Record Length: Sampling Point of 2 x 521k
- Vertical Deflection: 1mV/div~5V/div
Documents:
Warranty: 1 year against manufacturing defects
- Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.
Package Includes:
- 1 x Metravi DSO-5050E Dual Channel Digital Storage Oscilloscope

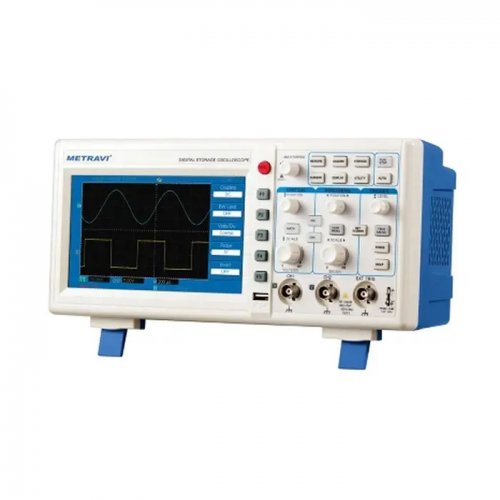

Metravi DSO-5050E Dual Channel Digital Storage Oscilloscope
- Brand: METRAVI
- Product Code:MTR-DSO-5050E-Oscilloscope
- Reward Points:310
- Availability:In Stock
- रo 31,050.00
-
रo 27,150.00
- Price in reward points:31050
