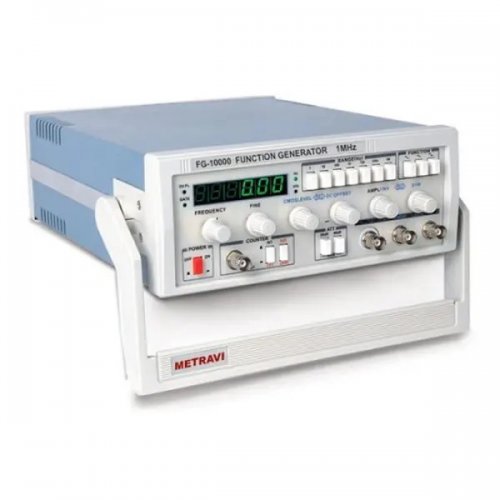

• Metravi Digital Function Generator - FG-10000

10MHz Function Generator.

Specifications:

  • Frequency of the mode: 0.1Hz–10MHz
  • Output waveform: Sine, Triangle, Square, ±Ramp, ±Pulse
  • TTL/CMOS and OUTPUT synchronous output
  • Voltage Control Frequency (VCF) Capacity
  • Less than 1% distortion at 10Hz– 100 KHz
  • Less than 0.5dB frequency response at 0.1Hz— 100 KHz
  • Frequency Counter: 1Hz—30MHz
  • Amplitude: Not less than 20V p–p (open circuit)
  • DC Voltage: 0–±10V continuously adjustable

Documents:

Warranty: 1 year against manufacturing defects

  • Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

  • 1 x Metravi Digital Function Generator - FG-10000

Write a review

Please login or register to review

Metravi Digital Function Generator - FG-10000

  • Brand: METRAVI
  • Product Code:MTR-Function-Generator-10MHz
  • Reward Points:264
  • Availability:In Stock
  • रo 26,450.00
  • रo 23,150.00

  • Price in reward points:26450
