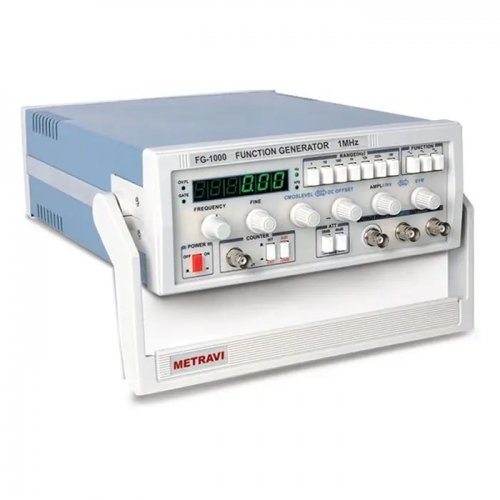

1MHz Function Generator with TTL / CMOS output.

Specifications:

• Frequency of the mode: 0.1Hz—1MHz
• Output waveform: Sine, Triangle, Square, ±Ramp, ±Pulse
• TTL/CMOS and OUTPUT synchronous output
• Voltage Control Frequency (VCF) Capacity
• Less than 1% distortion at 10Hz– 100 KHz
• Less than 0.5dB frequency response at 0.1Hz— 100 KHz
• Frequency Counter: 1Hz—30MHz
• Amplitude: Not less than 20V p–p (open circuit)
• DC Voltage: 0–±10V continuously adjustable

Documents:

• FG-1000

Warranty: 1 year against manufacturing defects

• Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

• 1 x Metravi Digital Function Generator FG-1000
