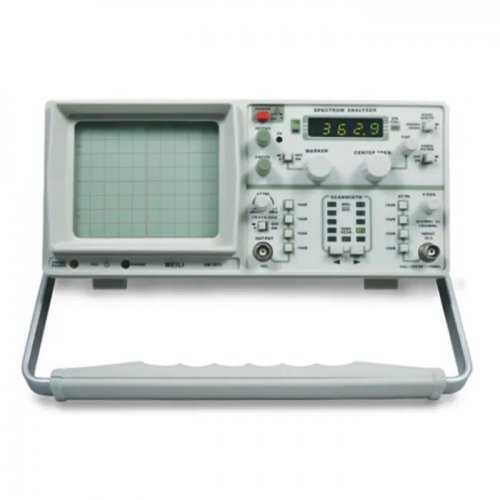

• Metravi AT-5011 Spectrum Analyzer

1050MHz Spectrum Analyzer With Marker Generator.

Specifications:

  • Frequency range: 0.15— 1050 MHz
  • Center frequency display accuracy: ±100kHz
  • Marker accuracy: (0.1% span +100kHz)
  • Resolution of frequency display: 100kHz(4.5 digit LED)
  • Frequency scan width: 100 kHz/div. to 100MHz/div. in 1-2-5 steps and 0Hz/div.(Zero Scan)
  • Frequency scan width accuracy: ±10%
  • Frequency stability: better than 150 kHz/ hour
  • IF Bandwidth (-3dB):
  • Resolution: 400 kHz and 20 kHz;
  • Video-Filter on: 4 kHz
  • Sweep rate: 43Hz
  • Amplitude range: -100dBm to +13 dBm
  • Screen display range: 80 dB (10dB/div.)
  • Reference level:-27dBm to +13 dBm (in 10dB steps)
  • Reference level accuracy: ±2dB
  • Average noise level: -99dBm (20 kHz BW)
  • Distortion: < -75 dBc:     2nd and 3rd harmonic / 3rd order intermod.:-70dBc / (two signals > 3MHz apart)
  • Sensitivity:
  • Log scale fidelity: ±2dB (without attn.) Ref.: 250MHz
  • Input impedance: 50 Ohms
  • Input connector: BNC
  • Input attenuator: 0 to 40 dB (4x10dB steps)
  • Input attenuator accuracy: 1dB/10 step
  • Max. input level:     +10dBm, ±25V DC (0dB attenuation) / +20dBm, (40dB attenuation)
  • Tracking Generator: Frequency range: 0.15 MHz to 1050 MHz
  • Output level range: -50dBm to +1dBm (in 10dB steps and var.)
  • Output attenuator: 0 to 40dB (4Å~10dB steps)
  • Output attenuator accuracy: ±1dB
  • Output impedance: 50> (BNC)
  • Frequency response: ±1.5dB
  • Radio Frequency Interference(RFI): <20dBc

Documents:

Warranty: 1 year against manufacturing defects
  • Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

  • 1 x Metravi AT-5011 Spectrum Analyzer

Write a review

Please login or register to review

Metravi AT-5011 Spectrum Analyzer

  • Brand: METRAVI
  • Product Code:MTR-AT5011-Spectrum-Analyzer
  • Reward Points:1598
  • Availability:In Stock
  • रo 159,850.00
  • रo 139,150.00

  • Price in reward points:159850
