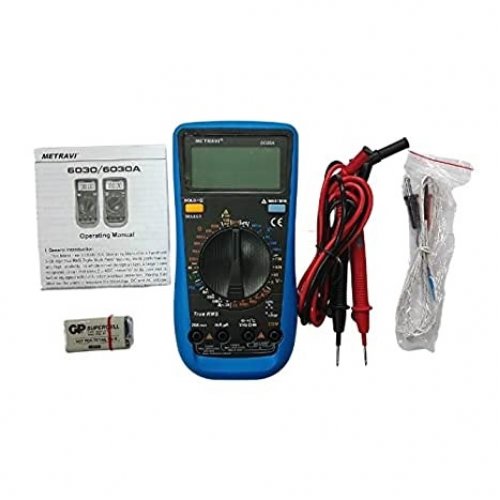

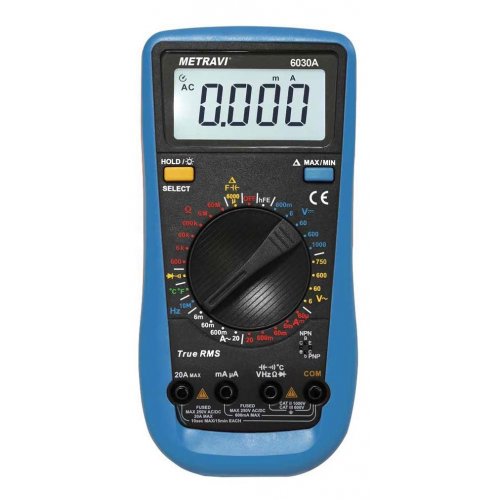

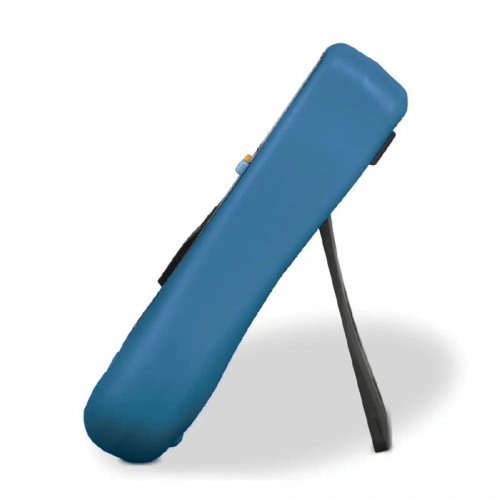

The Models 6030 & 6030A are handheld 3-5/6 digit 6000 Counts with backlit LCD Display, True RMS Digital Multimeter featuring stable performance and high reliability. Its whole circuit design utilizes a large scale integrated circuit that uses S/D ADC converter as its core and is further equipped with full function overload protection, making it an ideal tool for users to measure the followings: DC and AC Voltage, Electric Current, Resistance, Capacitance, Frequency, Temperature (6030A only), Diode, Transistor and Continuity test. This unit is designed and produced in strict accordance with GB4793, Safety Requirements for Electronic Measuring Instrument and Safety Standards coded as IEC61010-1 and IEC1010-2-032. It complies with safe standards, such as double insulation, over voltage (CAT II 1000V, CAT III 600V) and class of pollution.

Specifications:

More than 30 functional ranges are available.
LCD display, visible area 63×29mm.
Over range display “OL”.
Maximum displayed value 5999.
DC Voltage : 600mV/6V/60V/600V/1000V
Accuracy : ± (0.5%+2)
AC Voltage TRMS : 6V/60V/600V/750V
Accuracy : ± (0.8%+3)
DC Current : 60uA/6mA/60mA/600mA/20A
Accuracy : ± (0.8%+8)
AC Current TRMS : 6mA/60mA/600mA/20A
Accuracy : ± (1.0%+12)
Resistance : 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Accuracy : ± (0.8%+3)
Capacitance : 9.999nF/99.99nF ~ 999.9μF/9.999mF/99.99mF
Accuracy : ± (2.5%+20)
Frequency : 9.999Hz ~ 10.00MHz
Accuracy : ± (0.1%+5)
Temperature : -40 ~ 0°C / >0 ~ 100°C / >100 ~ 1000°C
Accuracy : ± (1.0%+3)
Overload protection for all ranges.
Auto Power Off.
Working temperature: 0°C ~ 40°C (32°F ~ 104°F)
Storage temperature: -10°C ~ 50°C (14°F ~122°F)
Low battery indicator: The battery symbol will be displayed at top left of the LCD.
Backlit LCD display.
Data hold to freeze displayed data.
Max-Min record function.
