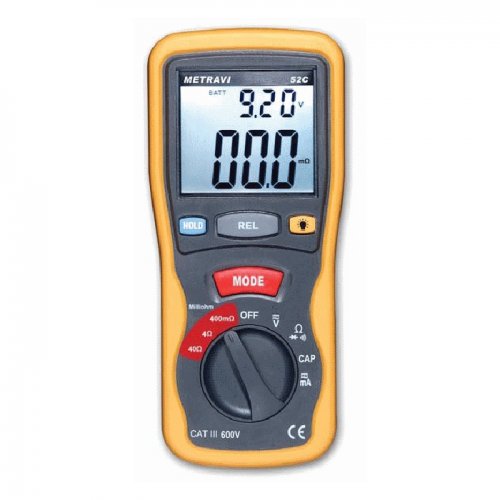

Hand Held, 0.1mOhms to 40 Ohms, 4 wire Kelvin type connection, also measures AC/DC Voltage, AC/DC Current, Resistance, Capacitance and continuity.

Specifications:

• Low resistance range: 0~40Ω
• Display: 3-3/4 Digits Large LCD with bar graph display
• Maximum output current : 200mA (400mΩ)
• Relative measurement
• Auto Power Off
• Low Battery and Over Range Indication
• 4Terminal Measurement with kelvin clip probes
• Overload Protection on all ranges
• Max / Min Recording
• Confirms to CAT-III 600V
• Low Resistance: 0 – 400m / 4 / 40 Ω
• Accuracy: ± 1%
• DC Voltage: 0 – 400m / 4 / 40 / 400 / 1000V
• Accuracy: ± 1%
• AC Voltage: 0 – 400m / 4 / 40 / 400 / 750V
• Accuracy: ± 1%
• DC Current: 0 – 400u / 4000u / 40m / 400mA
• Accuracy: ± 1.5%
• AC Current: 0 – 400u / 4000u / 40m / 400mA
• Accuracy: ± 1.5%
• Capacitance: 0 – 4n / 40n / 400n / 4u / 40u / 400u / 4m / 40mF
• Accuracy: ± 3.0%
• Resistance: 0 – 400 / 4k / 40k / 400k / 4M / 40M.Ohms
• Accuracy: ± 1.0%

Documents:

• 52C


• Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

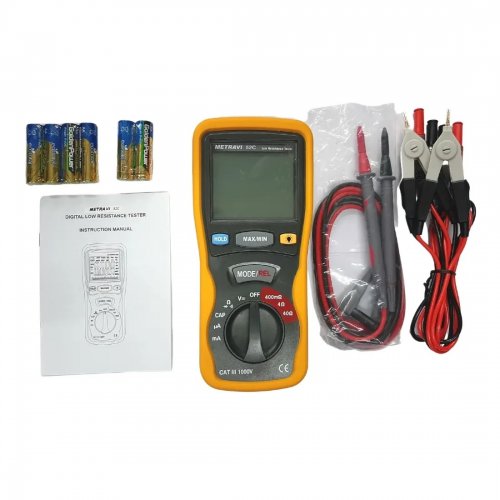

Package Includes:

• 1 x Metravi 52C Milli Ohms Meter
